Woodford® 27CP-10

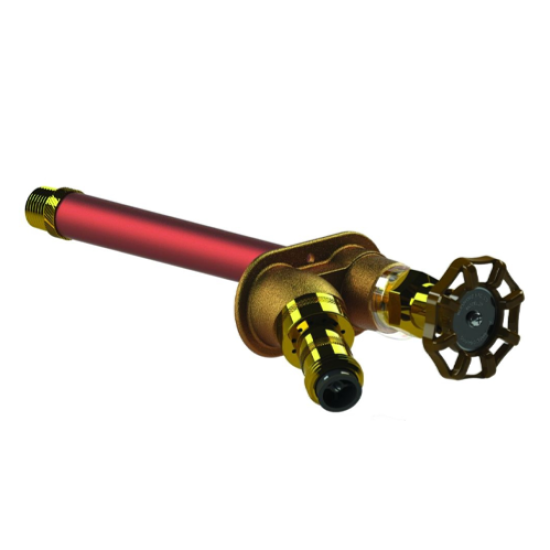

Woodford® 27CP-10 Model 27 Wall Faucet CP Inlet 10"

  • Manufacturers: Woodford Manufacturing
  • Brand Name: Woodford®
  • Part#: 262928
  • MPN: 27CP-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The Woodford Model 27 drains as handle is shut off even if hose is attached. This faucet is designed for residential outside water service applications and intended for irrigation purposes.

SPECIFICATIONS: MODEL 50HA BACKFLOW PREVENTER -

  • ASSE 1052 Approved
  • Listed by IAPMO
  • Field Testable
  • Two Independent Check Valves
  • Drains automatically when hose is removed
  • No spray back

    FEATURES:
  • EXTERIOR FINISH - Brass
  • VALVE - Molded nitrile suitable for hot water.
  • NOZZLE - 3/4 Inch male hose thread.
  • NO LEAD SOLDER - All solder joints.
  • PLUNGER - Hemispherical cushion type.
  • STEM SCREW - DELRIN?
  • HEAD NUT - Brass
  • HANDLE - Metal. (Optional Tee Key)
  • INLETS - 6 Options. CP shown in image.
  • MAX PRESSURE - 125 p.s.i.
  • MAX TEMPERATURE - 120 F
  • *Overall Length Dimension: Add wall thickness and inlet option length
