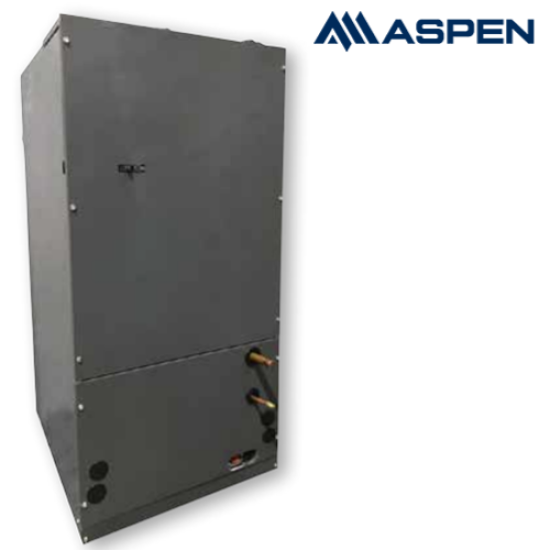

Aspen 5.0 Ton 240v Constant Torque ECM Multi-Position Air Handler, Aluminum Coil, 20% bleed A/C or H/P R410 TXV
Starting January 1, 2025, returns of R-410A products will no longer be accepted.
- Application Versatility: Upflow or horizontal right as shipped (field convertible for downflow or horizontal left applications). Can be AHRI certified with most brands of air conditioners or heat pumps. ETL-listed for use with all major refrigerants when proper metering device is used.
- All Aluminum Coil: High efficiency rifled aluminum tubes and enhanced aluminum fins provide maximum heat transfer. All coils factory leak tested with two-stage pressure decay and mass spectrometer process, then nitrogen pressurized, and factory-sealed for maximum reliability. Available with either factory-installed orifice of TRXV metering device. Field-installable bolt-on TXVs are also available. Access door allows for easy coil cleaning.
- Electronic Control Board: An electronic board controls the functioning of the system, reducing moving parts. The board provides a blower time delay to maximize heat/cool extraction and offers an integrated fuse for additional protection.
Installation Manual
