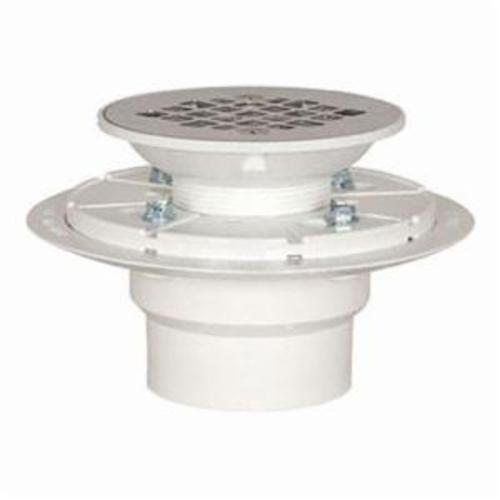

Sioux Chief 821 series shower pan drain shall be used where necessary in drainage systems. Drain shall have a beveled flashing base adapter with mounting holes for subfloor installation. Strainer shall meet all load and fl ow requirements for installations in shower areas. Invertible clamping collar shall fasten to drain body with four screws that thread into brass inserts. Drain body shall have a 2 in Sch. 40 hub connection and connect to DWV pipe via solvent weld joint. Designed in accordance with ASME A112.18.2-2005 / CSA B125.2-05.
| Connection Type | : | Hub |
| Dimensions | : | 6-5/8 in Dia |
| Drain Material | : | PVC |
| Grid Size | : | 4-3/8 in |
| Nominal Size | : | 2 in |
| Series | : | 821 |
- Beveled drain body and mounting holes for easy subfloor installation
- 3-1/2 to 5-1/2 in H adjustable
- Sch 40 hub connection
- Screw-on (no inserts) 430 stainless steel strainer
- 3.25 sq-in strainer free area
- 7.02 gpm strainer flow
- 300 lb strainer load rating
- No test plug
- Gray ABS head adapter and clamping collar
- Zinc-plated hex cap screws
- Gray PVC or black ABS base adapter
