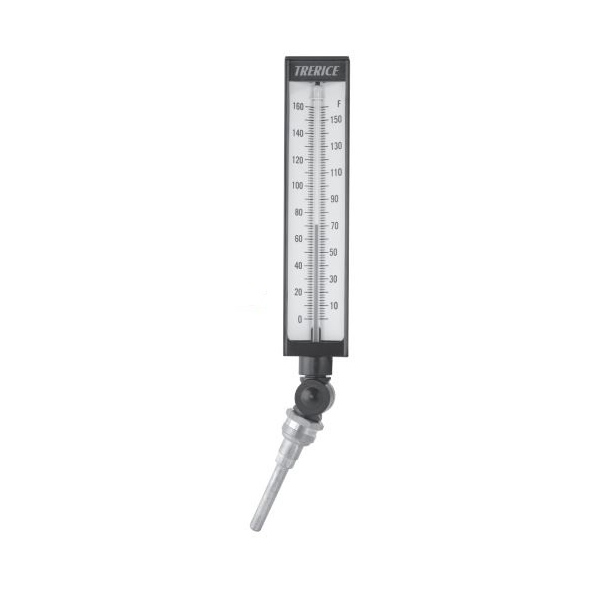

Recognized globally as the Trerice "BX" Industrial Thermometer, this is an instrument of extreme accuracy and rugged dependability. Available in scale sizes of 7 in (AX9), 9 in (BX9), and 12 in (CX9), with a durable cast aluminum case, this universally adjustable, liquid-in-glass thermometer is the most widely specified instrument of its kind.
Trerice Industrial Thermometer, Series: BX9, 0 to 160 deg F, +/-1 Scale Division, +/-1% Accuracy, 1-1/4 -18 UNEF-2A, 3-1/2 in L Stem, Spirit Sensing Liquid, Cast Aluminum Case, Aluminum Scale, Acrylic Window, 11.69 in H x 2.27 in W x 0.87 in D
| Accuracy | : | +/-1% |
| Case Type | : | Cast Aluminum |
| Dimensions | : | 2.27 in W x 0.87 in D x 11.69 in H |
| Process Connection | : | 1-1/4 -18 UNEF-2A |
| Scale Divisions | : | +/-1 |
| Scale Material | : | Aluminum |
| Sensing Liquid | : | Spirit |
| Series | : | BX9 |
| Stem Size | : | 3-1/2 in L |
| Temperature Rating | : | 0 to 160 deg F |
| Warranty | : | 1 Year |
| Window Material | : | Acrylic |
- Blue colored organic spirit
- Case: cast aluminum, blue epoxy finished
- Tube: lens front, magnifying type
- Aluminum scale, white background with black graduations and markings
- ABS top plate
- 9 in adjustable angle scale
- Aluminum stem
- Adjustable angle connection
