ICM™ ICM280

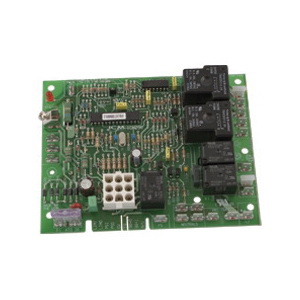

ICM™ ICM280 Furnace Control Board, 4-3/4 in L x 5-3/4 in W, 98 to 132 VAC Input, Domestic

  • Manufacturers: ICM Controls
  • Brand Name: ICM™
  • Part#: 154456
  • MPN: ICM280
  • UPC: 800442009223
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ICM™ Furnace Control Board, 4-3/4 in Length, 5-3/4 in Width, 98 to 132 VAC Input, Domestic

Domestic/Import      :      Domestic
Input Voltage      :      98 to 132 VAC
Length      :      4-3/4 in
Width      :      5-3/4 in
  • Furnace control - Replacement for OEM models including Goodman B18099-xx series control boards
  • Low cost form, fit and functional replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC
  • Microprocessor based design for precise timing
  • Functions with all 24 VAC thermostats
  • Drop-in replacement for Goodman, Janitrol, Texas Instruments, White-Rodgers and UTEC
  • Diagnostic fault codes (blinking LED) for simple troubleshooting
  • Twinning compatible with another ICM280
  • 9-pin card slot connection and 9-pin Molex connector on board
  • 1 in H
  • 5 A at 120 VAC ignitor
  • 2 hp at 240 VAC fan
  • 7 A at 250 VAC inducer motor
  • 1 A at 24 VAC gas valve
