Omega Flex FGP-ELLB-500

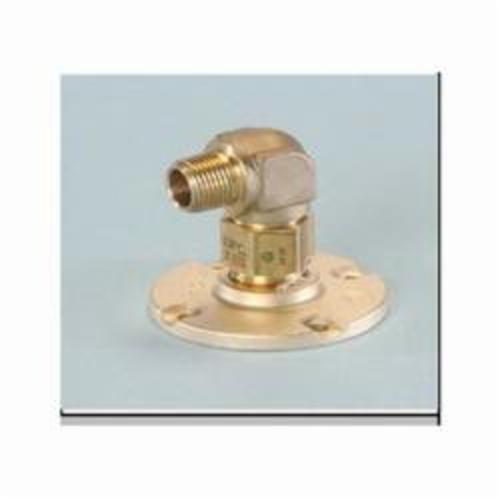

Omega Flex AutoFlare® FGP-ELLB-500 Flange Fitting, 1/2 in, MNPT, Yellow Brass, Domestic

  • Manufacturers: Omega Flex
  • Brand Name: Omega Flex
  • Part#: 59197
  • MPN: FGP-ELLB-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

AutoFlare® is the self-piloting fitting that attaches TracPipe® CounterStrike® to traditional gas fittings and appliances. No special tools or additional parts required.

Omega Flex AutoFlare® Flange Fitting, Fitting/Connector Type: Flange Fitting, 1/2 in Nominal Size, MNPT, 90 deg, 2-11/16 in Length, 25 psig, Yellow Brass, -20 to 200 deg F, Domestic

Angle      :      90 deg
Domestic/Import      :      Domestic
End Style      :      MNPT
Fitting/Connector Type      :      Flange Fitting
Length      :      2-11/16 in
Material      :      Yellow Brass
Nominal Size      :      1/2 in
Pressure Rating      :      25 psig
Temperature Rating      :      -20 to 200 deg F
Warranty      :      1 Year Limited
  • Termination fitting for ridgid mounting of TracPipe® or CounterStrike® tubing and provide a NPT thread
  • Fitting thread is male NPT
  • Stainless steel insert
  • CSA international evaluation report - 125 psig max operating pressure, 3/8 in through 1-1/4 in
  • 1-1/8 in dia across flats
  • Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
