Omega Flex FGP-TM-500
  1. pin-int

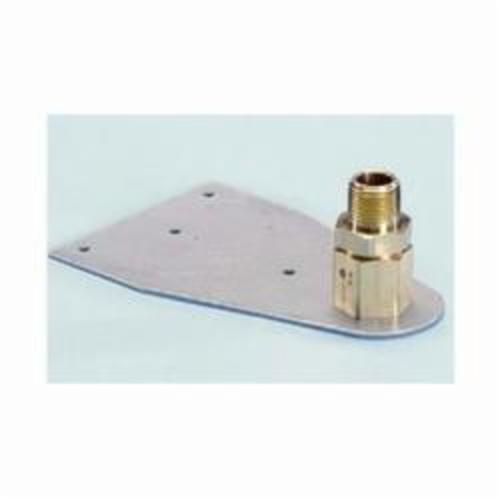

Omega Flex FGP-TM-500

Omega Flex AutoFlare® FGP-TM-500 Termination Mount, For Use With 1/2 in TracPipe® and CounterStrike® Fittings, 1/2 in

  • Manufacturers: Omega Flex
  • Brand Name: Omega Flex
  • Part#: 46591
  • MPN: FGP-TM-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Omega Flex AutoFlare® Termination Mount, For Use With: 1/2 in TracPipe® and CounterStrike® Fittings, 1/2 in, Brass, 6-3/8 in L x 4 in W x 2-7/16 in H, Domestic

Dimensions      :      6-3/8 in L x 4 in W x 2-7/16 in H
Domestic/Import      :      Domestic
Material      :      Brass
Specifications      :      1/2 in
Suitable For Use With      :      1/2 in TracPipe® and CounterStrike® Fittings
Warranty      :      1 Year Limited
  • Yellow brass nut, adapter and split rings
  • Stainless steel insert and plate
  • Galvanized steel mounting bracket
  • 25 psi operating
  • 125 psi max operating
  • -20 to 200 deg F operating
  • MNPT fitting thread
  • Termination fitting between TracPipe® or CounterStrike® tubing and NPT thread for indoor, outdoor, and concealed location
  • Must be installed in accordance with the TracPipe® design guide and installation instructions and all applicable codes
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Omega_Flex_FGP-LC_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Omega_Flex_FGP-LC_Data_Sheet.pdf
