ICM™ ICM281

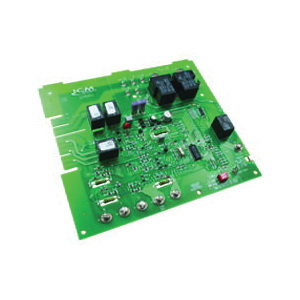

ICM™ ICM281 Furnace Control Board, 7-5/8 in L x 8-1/2 in W, 98 to 132 VAC Input, Domestic

  • Manufacturers: ICM Controls
  • Brand Name: ICM™
  • Part#: 154458
  • MPN: ICM281
  • UPC: 800442002811
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ICM™ Furnace Control Board, 7-5/8 in Length, 8-1/2 in Width, 98 to 132 VAC Input, Domestic

Domestic/Import      :      Domestic
Input Voltage      :      98 to 132 VAC
Length      :      7-5/8 in
Width      :      8-1/2 in
  • Furnace control - Replacement for OEM models including Carrier CES0110057-xx series control boards
  • Low cost, form, fit and functional replacement furnace control board
  • Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor based
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with 24 VAC standard thermostat
  • Provides diagnostic LEDs to aid in troubleshooting
  • 3/4 in H
  • 5 A at 120 VAC ignitor
  • 5 A, 1/2 hp, 250 VAC heat
  • 4 A FLA, 8 A LRA at 120 VAC inducer motor
  • 1.5 A at 30 VAC gas valve
