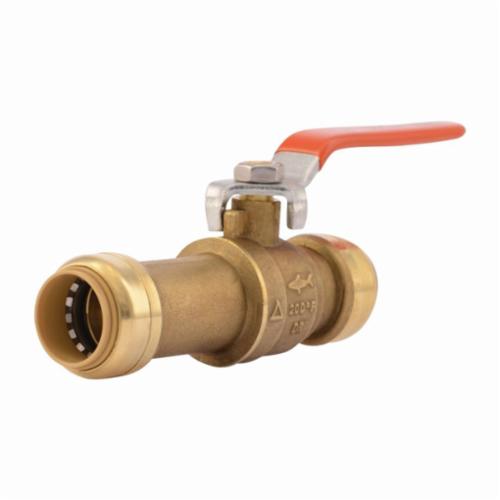

The SharkBite Slip Ball Valve allows you to make a quick repair and add a shutoff valve to rigid Copper or CPVC pipe. Simply insert the Slip Ball Valve onto the pipe after you've cut out your section and use the Disconnect Clip to slide the fitting back to the other end of pipe which completes the connection. This valve is easily rotated after assembly to allow easy access to the shutoff even in tight spaces.
Sharkbite® Ball Valve, 3/4 in Nominal, Push-Fit x Slip, 200 psi Pressure Rating, 200 deg F Temperature, Full Port, Media: Water, Lever Handle Actuator, Brass Ball, 4-1/2 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Softgoods Material: EPDM O-Ring
| Actuator Type | : | Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| End Style | : | Push-Fit x Slip |
| Inlet to Outlet Length | : | 4-1/2 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Softgoods Material | : | EPDM O-Ring |
| Temperature Rating | : | 200 deg F |
| Trim Material | : | Brass Stem |
| Warranty | : | 2 Years Limited |
- Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
- Convenient single lever control - makes them easy to use and encourages shut-off of water supply
- Full port ball valve - allows water to flow freely through the valve
- Utilizes a slip feature for easy installation- install quickly on existing copper and CTS CVPC pipe
- For use with rigid copper or CPVC pipe
- DZR lead free brass body and ball
- PTFE seat ring/packing
