Viega PEX Systems are the most complete potable water and hydronic system solutions available on the North American market and are recognized in virtually all major building codes. Viega PEX Press utilizes Press technology for PEX ensuring a consistent connection each time and are 100 percent factory assembled with stainless steel sleeves. Viega PEX Press fittings are available in sizes ranging from 3/8 to 2 in in both Zero Lead bronze and high-grade polymer materials. Viega's PEX systems meet or exceed all requirements of ASTM F876/877 and are approved for installations above and below ground applications.

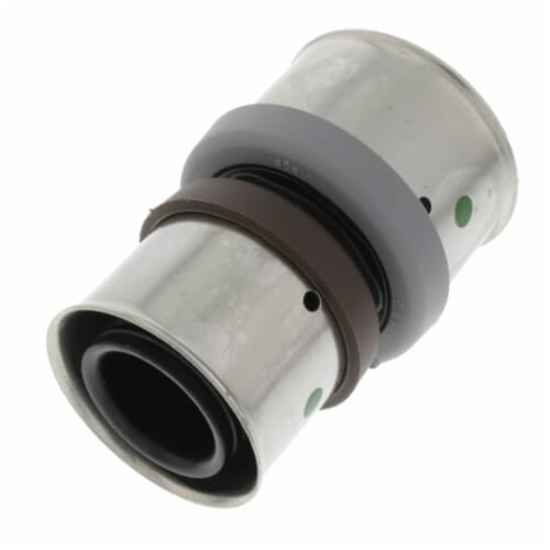

Viega Tube Coupling, Fitting/Connector Type: Coupling, 1-1/2 x 1-1/4 in Nominal Size, Pex Press, 2.69 in Length, Polymer
| End Style | : | Pex Press |
| Fitting/Connector Type | : | Coupling |
| Length | : | 2.69 in |
| Material | : | Polymer |
| Nominal Size | : | 1-1/2 x 1-1/4 in |
- The Viega PEX press polymer fittings incorporate a smart connect feature
- This feature is designed to identify unpressed connection by intentionally leaking under test pressure of 0.5 to 100 psi
- 160 psi maximum test pressure
- 100 psi recommended test pressure
- 180 deg F portable water operating temperature
- 200 deg F Hydronic operating temperature
- Suitable for use with ViegaPEX ultra, Viega FostaPEX, ViegaPEX barrier
- Recommend Tools: Ridgid RP 200-B (3/8 to 1-1/2 in), Ridgid RP 210-B (3/8 to 1-1/2 in), Ridgid RP 340
- Model V5615
- Note: zero lead identifies Viega® product meeting the lead free requirement of NSF 61-G through testing under NSF/ANSI 372 (0.25 percent or less maximum weighted average lead content)
Data/Spec Sheet-1
