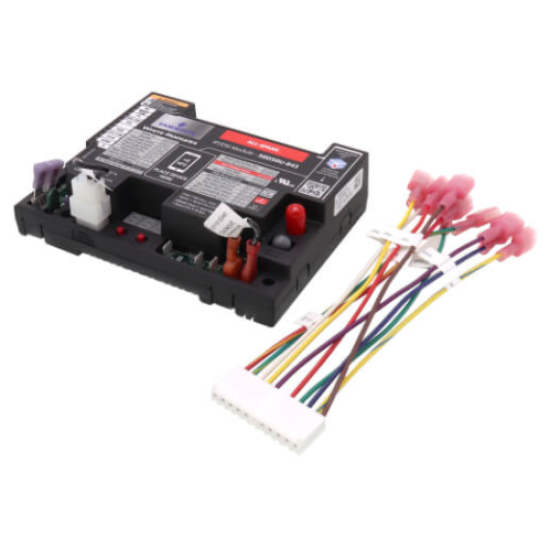

50D50U-843, All-Spark Universal Non-Integrated Ignition Module - Integrated NFC for Configuration and Diagnostics using the White-Rodgers Connect App. Replaces over 800 24V IP + DSI part numbers.
Features
- Configurable for both 24V intermittent pilot and direct spark ignition modules
- Streamline inventory by replacing over 800 24V IP/DSI part numbers
- Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
- 7-Segment display provides additional configuration options and expanded fault code message reporting
- Rajah and spade spark terminals on-board eliminate the need for an external adapter
- For use in natural and lp gas applications
Specifications
- Voltage (Low): 24 Vac, 50/60 Hz
- Voltage (Line): 120 Vac, 50/60 Hz
- Temperature Range Ambient Operating: -40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
- Humidity Range: 5% to 93% relative humidity (non-condensing)
- Certifications: UL Recognized (Canada & US)
