| Amperage Rating | : | 0.45 A |
| Domestic/Import | : | Import |
| Includes | : | Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner |
| Prepurge Time | : | 15 sec |
| Voltage Rating | : | 25 VAC |
| Warranty | : | Limited |

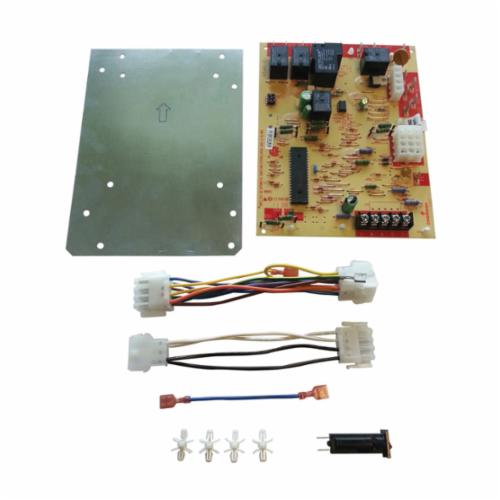

White-Rodgers™ Integrated HIS Furnace Control Kit, 25 VAC, 0.45 A, 15 sec Prepurge, Import
- Includes diagnostic indicators flash code
- 3 fan speed
- Remote flame sense
- Humidifier and electronic air cleaner connection (optional)
- 1.5 A at 25 VAC, 50/60 Hz, 0.6 PF valves relays
- 2 A at 120 VAC 50 or 60 Hz (resistive) ignitor relays
- 2.2 FLA to 3.5 LRA at 120 VAC inducer relays
- 14.5 FLA to 25.0 LRA at 120 VAC circulator relays
- -40 to 175 deg F operating
- 5 to 93 percent relative humidity (non condensing) humidity ranges
