| Diameter | : | 1/8 in |
| Drill Size | : | #30 |
| Grip Range | : | 0.063 to 0.125 in |
| Head Size | : | 0.25 in W x 0.032 in Thk |
| Hole Diameter | : | 0.125 to 0.135 in |
| Length | : | 0.232 in |
| Material | : | Steel |
| Series | : | D |
| Shear Strength | : | 260 lb |
| Tensile Strength | : | 310 lb |

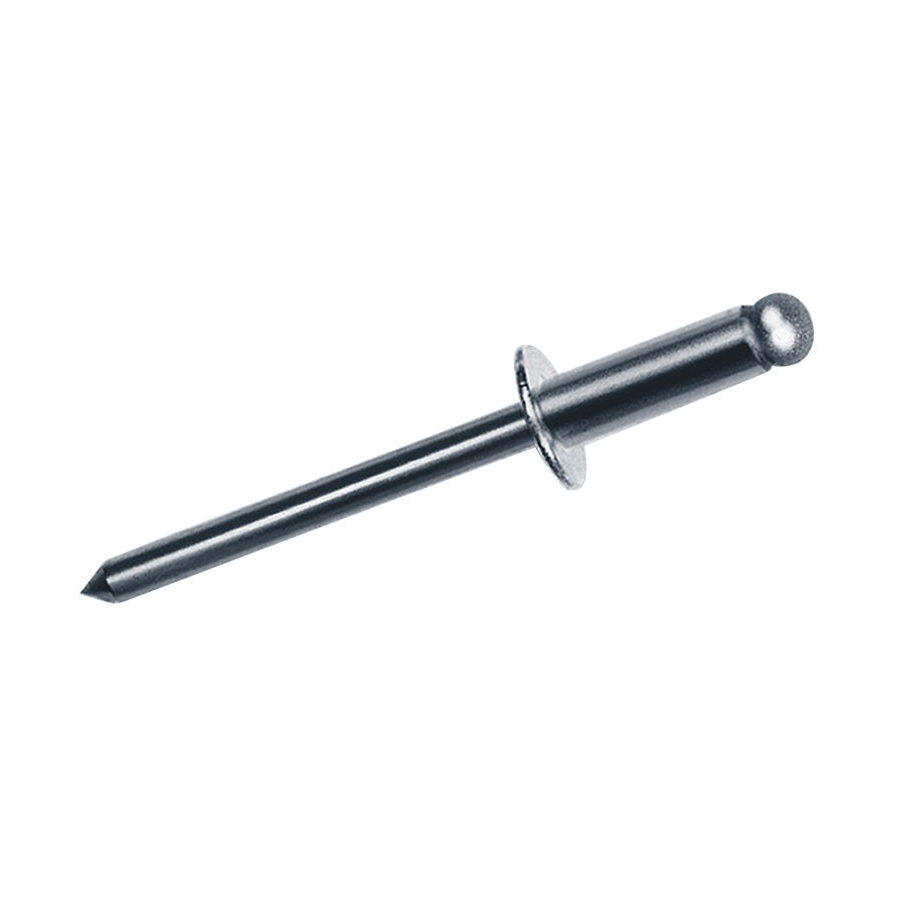

Malco™ Blind Rivets provide a strong, secure connection between two or more sheets of material, that will not loosen with vibration. Blind rivet fasteners can be used where access is limited to only one side of the material to be fastened. Rivets require only a pre-drilled or pre-punched hole. The blind rivet is an assembly, consisting of a mandrel and an eyelet body. Mandrels are used only to set the rivet body and are then discarded. Mandrel is designed to break off at the crimp after pulling the rivet body. No operator skill is required to set blind rivets. Low rivet profile offers cosmetic advantages over screws.
Malco® Blind Rivet, Series: D, 1/8 in Dia, 0.232 in Length, 0.25 in W x 0.032 in Thk Head, 0.125 to 0.135 in Hole Dia, #30 Drill, 0.063 to 0.125 in Grip Range, 260 lb Shear Strength, 310 lb Tensile, Steel, 100 per bag
- Steel rivet plated steel mandrel
