| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 4.1 in |
| Nominal Size | : | 1-1/2 in |
| Port Type | : | Full |
| Pressure Rating | : | 1000 psig CWP |
| Series | : | 76F-100 |
| Softgoods Material | : | RPTFE Seat/Seal/MPTFE Stem Packing |
| Top to Inlet Center | : | 3.31 in |
| Trim Material | : | 316 Stainless Steel Stem |
| Type | : | 2-Piece |
| Warranty | : | 5 Years |

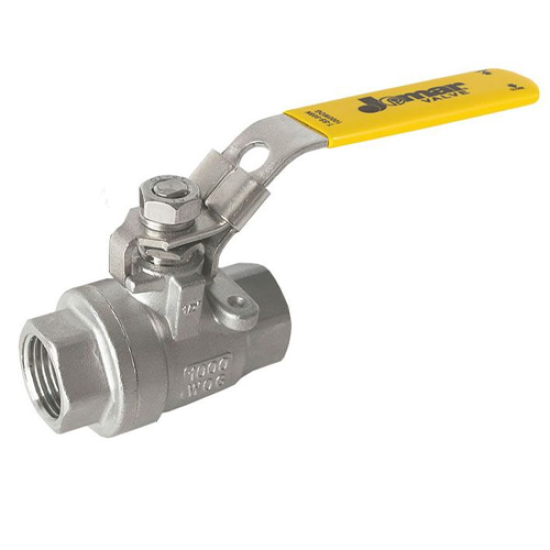

Ball Valve, 2-Piece, 1-1/2 in Nominal Size, FNPT, 1000 psig CWP, Full Port, Lever Handle Actuator, 316 Stainless Steel Ball, 4.1 in Inlet to Outlet Length, 3.31 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem Trim, RPTFE Seat/Seal/MPTFE Stem Packing, Domestic
- 01: Standard Configuration
- Investment cast components
- Reinforced seats
- Blow-out proof stem design
- Adjustable packing gland
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- Lead free: the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Complies with Federal Public Law 111-380 ANSI 3rd party approved and listed
- Cold non-shock
