| Coil Configuration | : | Upflow/Downflow |
| Dimensions | : | 13 in W x 15-1/2 in H x 19-3/8 in D |
| Enclosure Type | : | Uncased |
| Liquid Line Size | : | 3/8 in |
| Metering Device | : | Piston |
| Nominal Capacity | : | 2.5 Ton |
| Refrigerant Type | : | R410A |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.5 Ton |
| Width | : | 13 in |

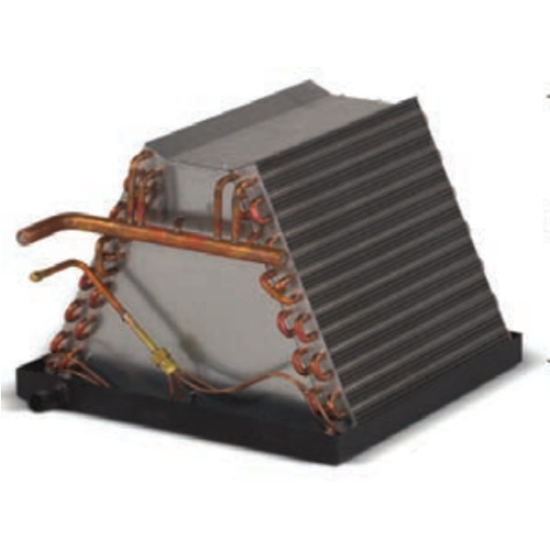

Aspen Evaporator Coil, CA Series, 1.5 - 2.5 ton Nominal Capacity, Upflow/Downflow, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, Copper Tube, Uncased, 13 in W x 19-3/8 in D x 15-1/2 in H, For Service Only - Not to be Installed with New Outdoor Unit
- Rifled copper tubing, enhanced aluminum fins
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed
- Right hand refrigerant and plumbing connections
- Externally mounted flowrate body with Schrader valve for hiss-testing
- Upflow without field modification
- Downflow applications require plate kit (included)
