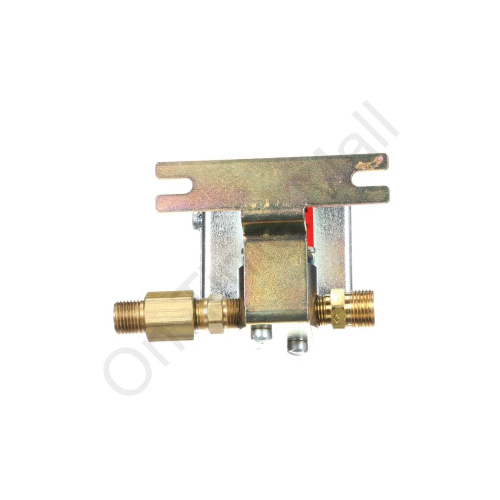

This is a 115 V, electrically-operated valve that turns the water on and off to your humidifier. This assembly contains a solenoid valve, which is fitted with an orifice. The orifice contains a strainer screen, which filters the water before it passes through the valve, catching things like sand and dirt which could otherwise cause blockage. This valve needs to be replaced about every ten years, or more often if it fails and is stuck open or closed. The threaded orifice fitted to the solenoid valve may also need to be replaced if it becomes clogged. This solenoid valve fits GeneralAire humidifier models 709, 1040, 1042.
GeneralAire® Solenoid Valve Assembly, For Use With: GeneralAire® Humidifier Model 709, 1040 and 1042, 1/4 in ID x 3/8 in OD Inlet, 5/16 in ID x 1/2 in OD Outlet, 3/32 in Orifice, 115 VAC, 6 W, 3-1/2 in L
| Dimensions | : | 3-1/2 in L |
| Specifications | : | 1/4 in ID x 3/8 in OD Inlet, 5/16 in ID x 1/2 in OD Outlet, 3/32 in Orifice, 115 VAC, 6 W |
| Suitable For Use With | : | GeneralAire® Humidifier Model 709, 1040 and 1042 |
- Regulates flow of water into humidifier
- Model No 990-52
