Designed for Performance
Knowledge, power and experience are packed into the SMAN® Refrigerant 4-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece’s laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.

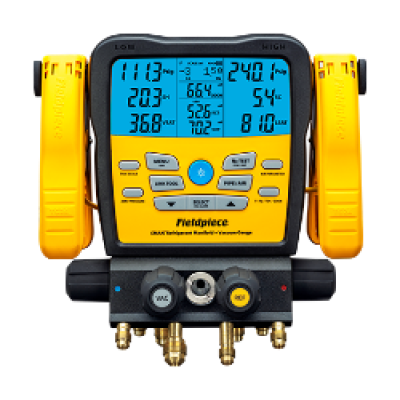

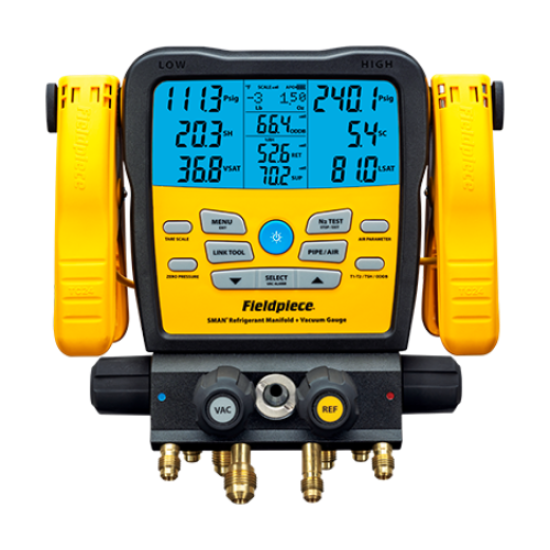

With wireless capabilities, data logging, and tightness testing, the SM482V is built so you can do your job easier, faster and better.
Simply Strong
The SM482V 4-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work.
Packed with Knowledge
The SM482V is designed to work the way you do with advanced features to streamline your job and provide the answers you need.
- Ports: (3) 1/4″ for suction line, liquid line and refrigerant recovery/charging; (1) 3/8″ vacuum
- Display: LCD (5 inches diagonal)
- Backlight: Blue (adjustable duration)
- Low Battery Indication: displayed when the battery voltage drops below the operating level
- Auto Power Off: 30 minutes of inactivity (adjustable)
- Battery Type: (6) AA alkaline
- Battery Life: 405 hours (w/ backlight and wireless OFF)
- Radio Frequency: 2.4 GHz
- Wireless Range: 1000 feet (305 meters) line of sight, distance decreases with obstructions
- Data Port: USB-C (for extracting data logs or updating firmware)
- Maximum Manifold Pressure: 870 Psig (6000 kPa)
- Vacuum: 50 to 9999 microns
- Temperature Measurement Range: -50° to 257° F (-46° to 125° C)
- Operating Environment: -10°C to 50°C (14°F to 122°F) at <75% RH
- Storage Environment: -20°C to 60°C (-4°F to 140°F) at <80% RH (with battery removed)
- Dimensions: 8.75” W x 8.5” H x 3.75”D
- Weight: 4.6 lbs (2.1 kg)
- Water Resistant: Tested to IP55
