Spears® 829-025
  1. pin-int

Spears® 829-025

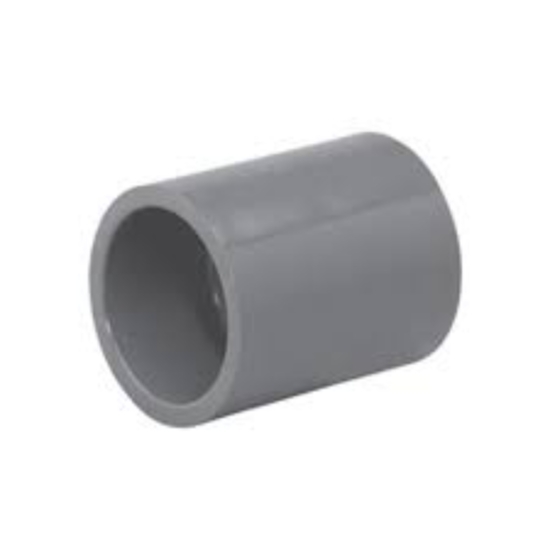

2-1/2" Standard Coupling, Socket End Style, SCH 80/XH, PVC

  • Manufacturers: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: 143779
  • MPN: 829-025
  • UPC: 054211160862
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.

Spears® Coupling, Standard, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Socket, 3-11/16 in Length, SCH 80/XH, 150 psi, Method of Manufacture: Molded, PVC, Gray, 3-15/32 in W, Domestic

Color      :      Gray
Dimensions      :      3-15/32 in W
Domestic/Import      :      Domestic
End Style      :      Socket
Fitting/Connector Type      :      Coupling
Length      :      3-11/16 in
Material      :      PVC
Method of Manufacture      :      Molded
Nominal Size      :      2-1/2 in
Pressure Rating      :      150 psi
Schedule Rating      :      SCH 80/XH
Type      :      Standard
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Spears_829025_Specification_Sheet.pdf
  • linkVideo Link http://youtu.be/Auyhm7YKQEICategories
