Tomahawk 696-G1010MF

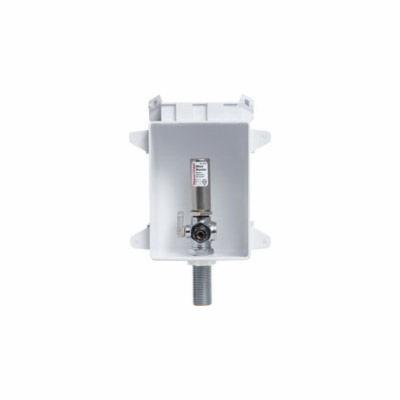

Tomahawk OxBox™ 696-G1010MF Ice Maker Outlet Box, 1/2" Female C Inlet, 1/4" Compression Outlet, ABS
Sioux Chief 696 and 696 series OxBox™ washing machine, ice maker and lavatory outlet box valves shall be used where necessary in plumbing supply systems. Units shall allow for various 1/2 in supply line inlet connections. Units shall be equipped with quarter-turn operation. Valves shall be chrome plated. Valves shall be available with our without water hammer arresters.
Tomahawk OxBox™ Ice Maker Outlet Box, Series: 696, 1/2 in Inlet, 1/4 in Outlet, Female C Inlet, Compression Outlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H, Import
| Dimensions | : | 5-3/4 in W x 7-1/4 in H |
| Domestic/Import | : | Import |
| Inlet Size | : | 1/2 in |
| Inlet Type | : | Female C |
| Material | : | ABS |
| Outlet Size | : | 1/4 in |
| Outlet Type | : | Compression |
| Pressure Rating | : | 250 psig |
| Series | : | 696 |
| Temperature Rating | : | 250 deg F |
- Boxes mount securely to stud or over studs
- Durable ABS stands up to jobsite abuse
- Box mounts easily to stud for top or bottom supply
- High quality quarter-turn ball valve
- The debris cover protects valves from drywall mud and paint during construction
- 100 psi max testing air pressure
- ABS frame, galvanized steel bracket, stainless steel arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning, 111 FDA approved silicone compound, chrome-plated forged brass valve body
- Without hose
- Standard pack (supply box, frame, bracket, debris cover)
