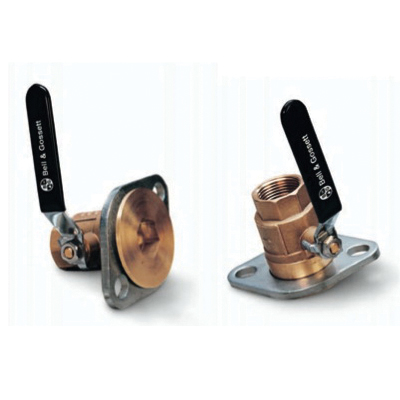

Bell & Gossett 101226LF

Bell & Gossett 101226LF Isolation Flange, 3/4" Nominal, C End Style, 150 psig Pressure, Brass Body

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • Part#: 241243
  • MPN: 101226LF
  • UPC: 683328231693
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The isolation flange is a combination of an isolation ball valve and a companion flange for circulators. The isolation flange allows easy service or replacement of the circulator without the need to drain the system. The isolation flange fits the Bell & Gossett NRF/NBF/SSF wet rotors, Series PL, Series 100, PR and LR circulators.

Bell & Gossett Isolation Flange, 3/4 in Nominal, C, 150 psig, 200 deg F, Handle Actuator, Brass Body, Brass Trim, PTFE Packing Seat Ring, Polished Chrome, 4-7/16 in Flange, 2-41/64 in Inlet to Outlet Length x 2 in Top to Inlet Center Valve

Actuator Type      :      Handle
Body Material      :      Brass
Dimensions      :      4-7/16 in Flange, 2-41/64 in Inlet to Outlet Length x 2 in Top to Inlet Center Valve
End Style      :      C
Finish      :      Polished Chrome
Nominal Size      :      3/4 in
Pressure Rating      :      150 psig
Softgoods Material      :      PTFE Packing Seat Ring
Temperature Rating      :      200 deg F
Trim Material      :      Brass
  • Free floating flange allows easy alignment and installation of pumps
  • Isolates the circulator so you don't need to drain the entire system
  • 50 state lead free
  • Suitable for use with NRF/NBF/SSF, Series PL-30, PL-36, PL-55,Series 100, PR and LR B and G circulators
  • Construction: Lead-free brass valve body, chrome plated steel flange and lead-free brass ball
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/Xylem_110196LF_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Xylem_101226LF_Specification_Sheet.pdf
