Sloan® 3010326

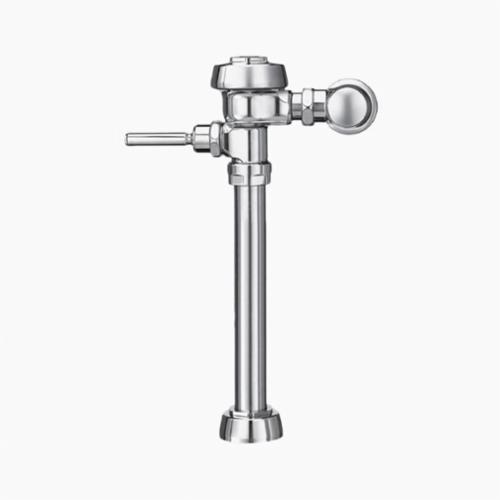

Sloan® Royal® 3010326 115 Single-Flush Manual Exposed Flushometer, 1.6 gpf, 1" IPS Inlet, 1-1/2" Spud, 15 to 80 psi, Polished Chrome
Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: 115, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm, Connection Location: Top Spud, 15 to 80 psi, Non-Hold Open Oscillating, Semi-Red Brass, Polished Chrome
| Connection Location | : | Top Spud |
| Finish/Color | : | Polished Chrome |
| Fixture Type | : | Water Closet |
| Flush Rate | : | 1.6 gpf |
| Handle Type | : | Non-Hold Open Oscillating |
| Inlet Size | : | 1 in IPS |
| Material | : | Semi-Red Brass |
| Pressure Rating | : | 15 to 80 psi |
| Rough-In Size | : | 24 in |
| Series | : | 115 |
| Spud Coupling | : | 1-1/2 in |
| Type | : | Single-Flush |
| Valve Design | : | Diaphragm |
- Flush volumes start as low as 1.28 gpf/4.8 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
Line Drawing
