Apollo™ LD14508SV12

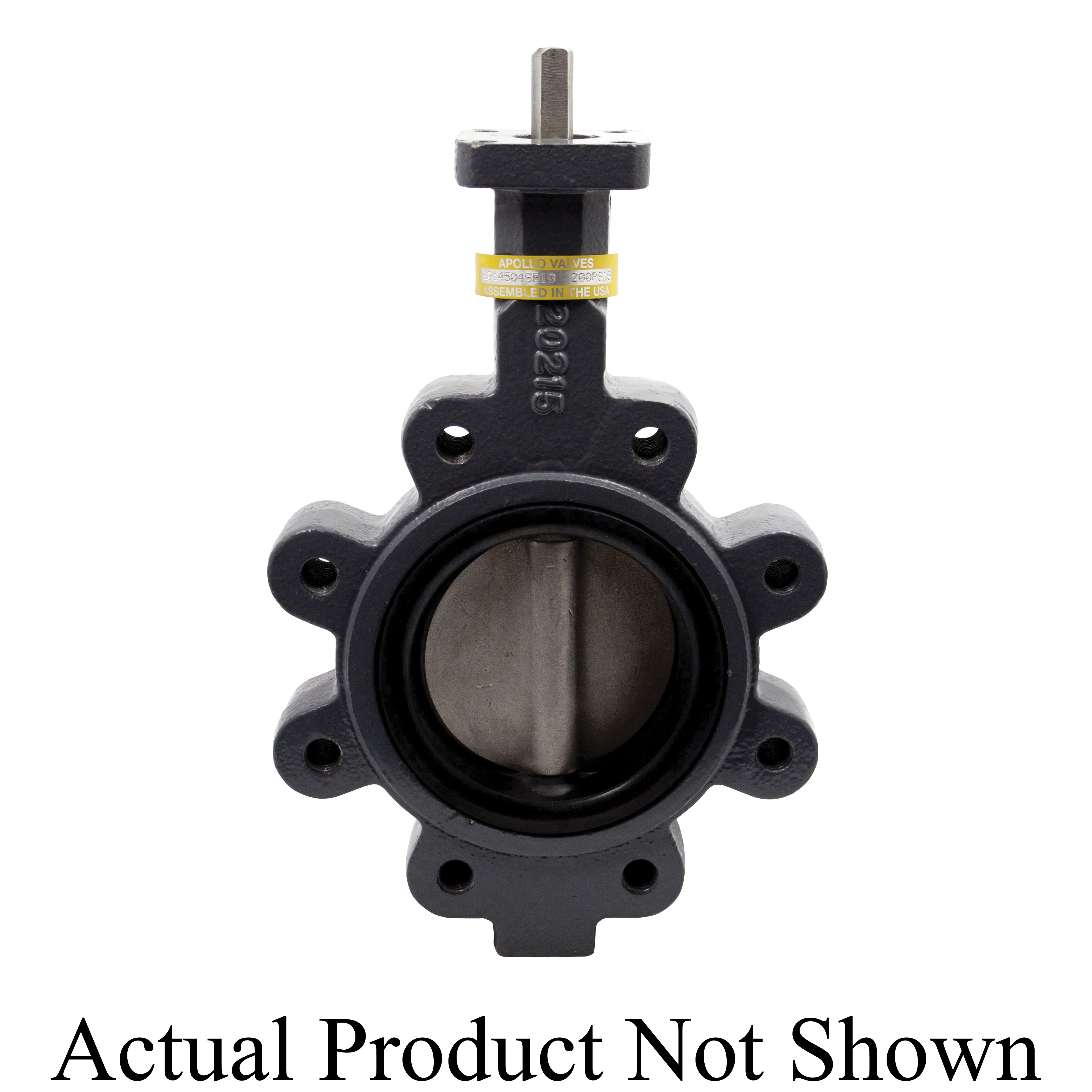

8" Resilient Seated Lug Style Butterfly Valve, Flanged End Style, 125/150 lb, Ductile Iron Body, Buna-N Softgoods, Apollo™ LD14508SV12
The Apollo™ LD145/WD145 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The WD145 Series is a wafer style valve and the LD145 Series is a lug style.
Apollo™ Butterfly Valve, Resilient Seated Lug Style, Series: LD145, 8 in Nominal, Flanged, 125/150 lb, -20 to 300 deg F, Gear Actuator, Ductile Iron Body, 316 Stainless Steel Disc, Buna-N, Epoxy Powder Coated, Gray, Domestic
| Actuator Type | : | Gear |
| Body Material | : | Ductile Iron |
| Color | : | Gray |
| Disc Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Flanged |
| Finish | : | Epoxy Powder Coated |
| Nominal Size | : | 8 in |
| Pressure Class | : | 125/150 lb |
| Series | : | LD145 |
| Softgoods Material | : | Buna-N |
| Temperature Rating | : | -20 to 300 deg F |
| Type | : | Resilient Seated Lug Style |
- Compatible with ANSI 125 lb and 150 lb flanges
- ISO 5211 top plate allows choice of Apollo™ pneumatic actuators and manual operators
- LD145 series suitable for end of line service to rated pressure (2 to 12 in)
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- ASTM A276 type 416 stainless steel standard shaft
- Buna-N stem seal and glass reinforced epoxy resin bushing
- FKM seat
- Gear operator-direct mount
- Pin-less/bolt-less stem shaft design
- Double-D stem input through 12 in
