Apollo™ 61Y09801

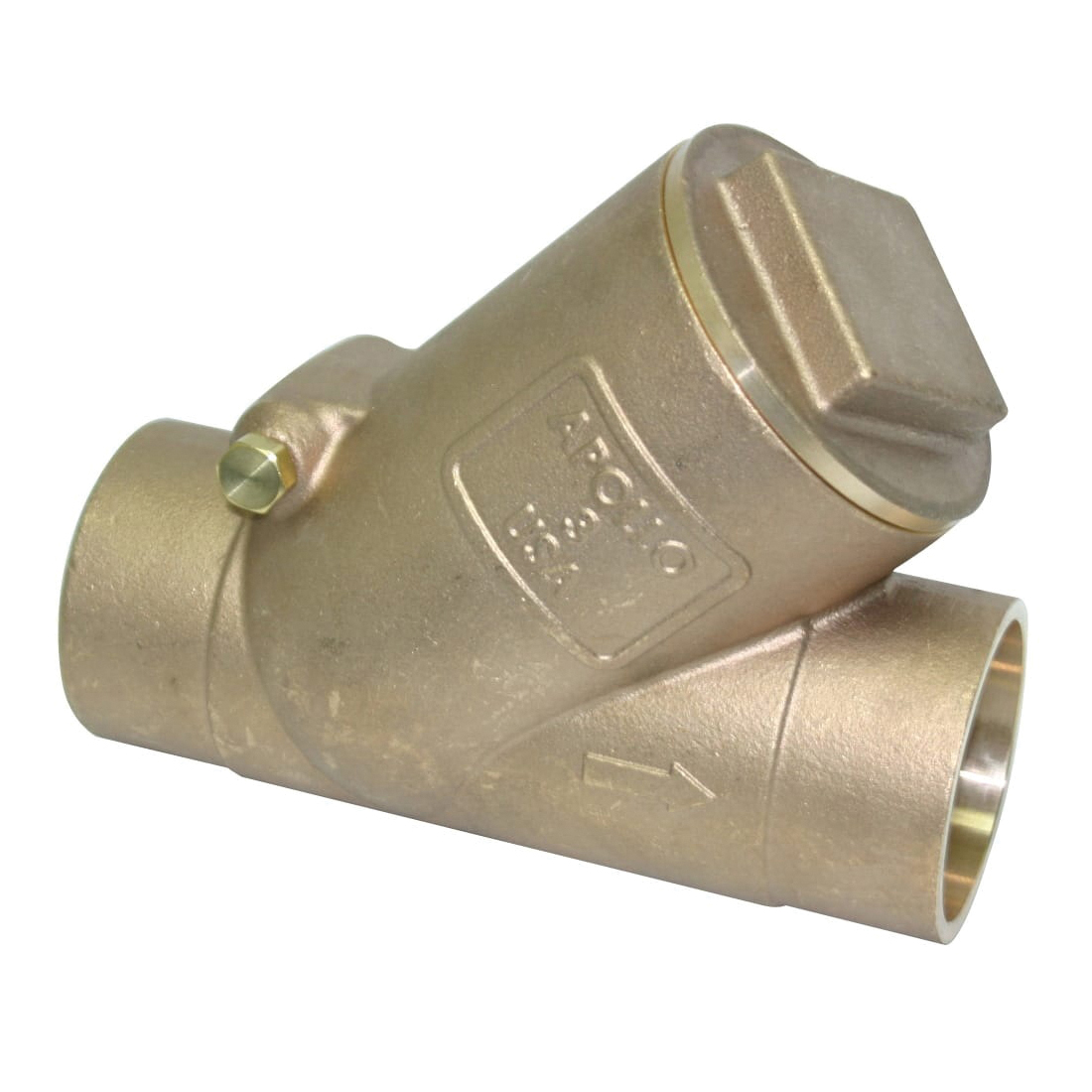

2" Y-Pattern Swing Check Valve, Solder Joint End Style, 125 lb, Bronze Body, Apollo™ 61Y09801 161S

  • Manufacturers: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 198871
  • MPN: 61Y09801
  • UPC: 670750685958
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The Apollo™ Model 161S (61Y Series) Swing Check provides a cost effective "Made in the USA" alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ swing check can be installed in either horizontal or vertical line with upward flow.

Apollo™ Swing Check Valve, Y-Pattern, Series: 161S, 2 in Nominal, Solder Joint End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, No Low Lead Compliance, 152 gpm Flow Rate, 6.5 in Inlet to Outlet Length, Bronze Body, Bronze Trim, 3.74 in H, Domestic

Body Material      :      Bronze
Dimensions      :      3.74 in H
Domestic/Import      :      Domestic
End Style      :      Solder Joint
Flow Rate      :      152 gpm
Inlet to Outlet Length      :      6.5 in
Low Lead Compliance      :      No
Nominal Size      :      2 in
Pressure Class      :      125 lb
Pressure Rating      :      200 psi CWP
Series      :      161S
Temperature Rating      :      -20 to 406 deg F
Trim Material      :      Bronze
Type      :      Y-Pattern
  • Renewable bronze seat disc
  • Dezincification resistant
  • 100% factory tested per MSS
  • 100% cast, machined and assembled in the US
  • Bronze seat/seat disc
