Apollo™ 77V-140-01

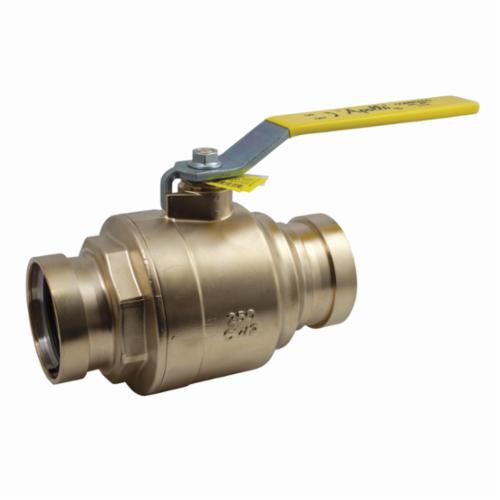

3" Ball Valve, Press End Style, Brass Body, Full Port, RPTFE/EPDM Softgoods, Apollo™ APOLLOXPRESS® 77V-140-01
The ApolloXpress® 77V140 Series two-piece press ball valve with stainless steel ball and stem is ideal for installation in heating, cooling and non-potable plumbing. Features Leak Before Press® technology and 250 psig maximum working pressure.
Apollo™ APOLLOXPRESS® Ball Valve, Series: 77V-140, 3 in Nominal, Press, 250 deg F, Full Port, Media: Chilled Water/Hot Water, 3 in Orifice, Lever Handle Actuator, Stainless Steel Ball, 9.45 in Inlet to Outlet Length, 5.03 in Top to Inlet Center, Brass Body, Stainless Steel Trim, RPTFE/EPDM, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | Stainless Steel |
| Body Material | : | Brass |
| Domestic/Import | : | Domestic |
| End Style | : | Press |
| Inlet to Outlet Length | : | 9.45 in |
| Media | : | Chilled Water/Hot Water |
| Nominal Size | : | 3 in |
| Orifice Size | : | 3 in |
| Port Type | : | Full |
| Series | : | 77V-140 |
| Softgoods Material | : | RPTFE/EPDM |
| Temperature Rating | : | 250 deg F |
| Top to Inlet Center | : | 5.03 in |
| Trim Material | : | Stainless Steel |
- Adjustable stem packing nut
- Ridgid® XLC press tool compatible
- Leak before Press® technology
- Blow-out proof stem design
- Corrosion resistant materials
- Silicone free
- EPDM O-ring seals
- UNS C27451 lead free brass retainer
- Forged brass
- RPTFE stem packing seat
