Amtrol® WX200PS
  1. pin-int

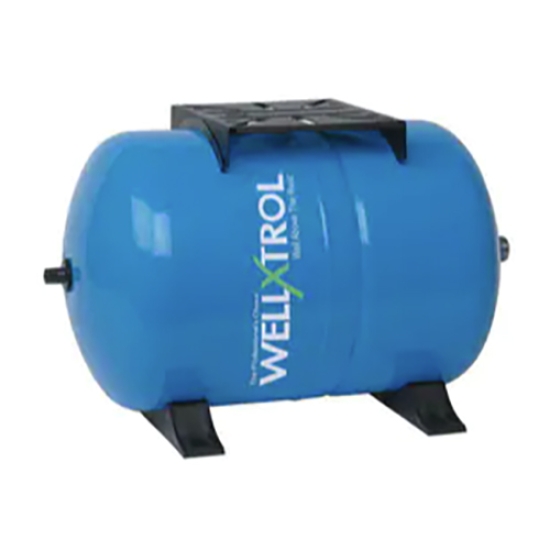

Amtrol® WX200PS

14 gal, 1" Discharge, 16" Dia Overall, Antimicrobial Liner, 150 psig, Horizontal Well Tank With Pump Stand, MNPT Discharge, Amtrol® WELL-X-TROL® Professional WX200PS WX Series

  • Manufacturers: Amtrol
  • Brand Name: Amtrol®
  • Part#: 449518
  • MPN: WX200PS
  • UPC: 642031644268
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Amtrol® invented the first pre-pressurized well tank over 50 years ago as a better solution to traditional air-over-water tanks. This revolutionary product featured an innovative design that uses a hoop ring and groove to lock the diaphragm, liner and shell together. Today, Well-X-Trol® is still the standard of the industry with many unique features including high strength steel to deliver 150 PSIG working pressure, patented Turbulator™ water circulator device and antimicrobial liner that neutralizes bacteria on contact. Well-X-Trol® is the world's most trusted brand of well tanks, backed by an industry leading 7-year limited warranty.

Amtrol® WELL-X-TROL® Professional Well Tank, Horizontal, Series: WX Series, MNPT Discharge Connection Type, 1 in Discharge, 16 in Overall Dia, 22 in Height, 14 gal, 0.81 Max Acceptance Factor, Antimicrobial Liner, 150 psig, 38 psig Precharge, High Strength Steel Shell, Blue, Domestic

Capacity      :      14 gal
Color      :      Blue
Discharge Connection Type      :      MNPT
Discharge Size      :      1 in
Domestic/Import      :      Domestic
Height      :      22 in
Liner Material      :      Antimicrobial
Material      :      High Strength Steel Shell
Max Acceptance Factor      :      0.81
Overall Diameter      :      16 in
Precharge Rating      :      38 psig
Pressure Rating      :      150 psig
Series      :      WX Series
Type      :      Horizontal
  • Strongest tank design featuring deep drawn steel and multi-dome construction
  • Thickest diaphragm heavy duty butyl
  • Tuf-Kote™ HG toughest indoor/outdoor coating
  • Patented turbulator™ water circulation device
  • Antimicrobial liner to neutralize bacteria on contact
  • Stainless steel system connection
  • Welded air stem to help eliminate leaks
  • Patented DuraBase® composite stand never corrodes
  • Can be used indoors or outdoors
  • Controls pump cycling in residential well water systems
