Sloan® 0308803

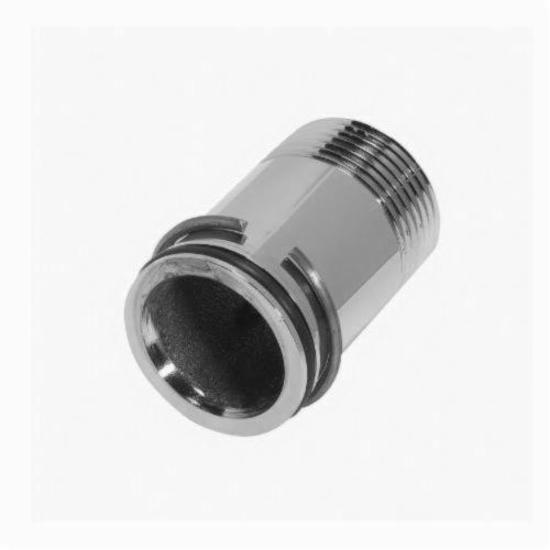

Sloan® 0308803 Tailpiece Assembly, For Use With Royal and Regal Flush Valve, Brass, Chrome Plated

  • Manufacturers: Sloan Valve Company
  • Brand Name: Sloan®
  • Part#: 194335
  • MPN: 0308803
  • UPC: 671254010895
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The majority of flushometers supplied by Sloan since 1964 feature the H-551-A adjustable tailpiece. The valve tailpiece connects to the control stop with a sliding O-ring seal. The H-551-A adjustable tailpiece standard length is 2-1/16 in (54 mm). This is designed for a standard flushometer installation in which the distance between the centerline of the valve and the centerline of the water supply inlet is 4-3/4 in (121 mm). The adjustable tailpiece allows for a variance of +/-1/2 in (13 mm) from this nominal dimension.

Sloan® Tailpiece Assembly, For Use With: Royal and Regal Flush Valve, Brass, Chrome Plated, 3-1/16 in

Dimensions      :      3-1/16 in
Finish/Color      :      Chrome Plated
Material      :      Brass
Suitable For Use With      :      Royal and Regal Flush Valve
