Mars® 20109

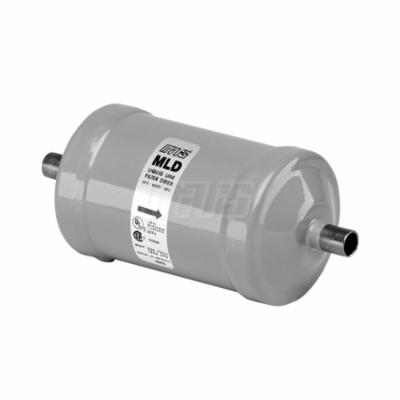

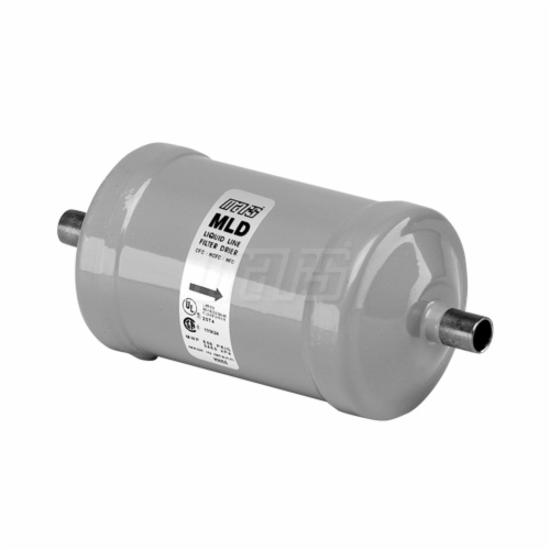

Mars® 20109 Liquid Line Filter Drier, 1/4 in ODF Solid Copper, Import

  • Manufacturers: Mars
  • Brand Name: Mars®
  • Part#: 402105
  • MPN: 20109
  • UPC: 685744201090
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The MARS Liquid Line Filter Driers are designed to offer complete protection of your refrigerant system. The desiccant block is a carefully selected blend of molecular sieve and activated alumina, providing for maximum removal of moisture, acid, and foreign materials. This molded desiccant block allows for efficient filtration and retention of solid contaminants, while insuring minimum pressure drop. The solid molded block exposes maximum surface area and provides even distribution of filtered material as the refrigerant flows through the drier. These driers are intended for use on R-134A, R-404A, R-4.

Mars® Filter Drier, Liquid Line, 1/4 in ODF Solid Copper Connection, 2-1/2 in Dia, 4.33 in Overall Length, 600 psig, Nickel Plated, Import

  • High moisture removal
  • High organic & inorganic acid removal
  • Solid block desiccant core
  • Nickel plated SAE flare and solid copper ODF fitting
  • Corrosion resistant
  • Minimum burst pressure 2500 psig
  • 1.9 ton R404A/R507 flow capacity at 1 psi
  • 2.9 ton R22/R410A flow capacity at 1 psi
  • 3 ton R12/R134A flow capacity at 1 psi
  • For use with all CFC, HCFC and HFC refrigerants
