John Guest® PSEI532820E

ProLock Push-to-Connect Stackable Tees are the easiest and most dependable way to create a manifold to join Copper, PEX, or CPVC pipe in any combination with no solder, glue, or tools required. Simply insert the stem end into another ProLock fitting to add onto existing pipe work. JG ProLock fittings use a collet with stainless steel teeth that grips the pipe when fully inserted, and an EPDM O-Ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. Disconnection is just as easy with no tools needed; simply unlock twist the cap 1/4 in. turn counterclockwise to unlock then depress collet against the fitting to remove the pipe.

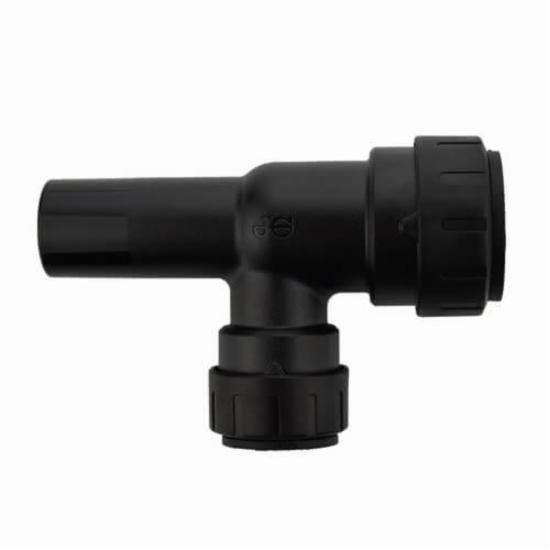

3/4" x 3/4" x 1/2" John Guest CTS ProLock Stackable Tee

• Lead-free, Full flow, & UV Resistant. ProLock Twist-to-Lock fittings are suitable for hot and cold potable water and hydronic heating applications.
• Specifications: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F
