Mueller® CGI_272596

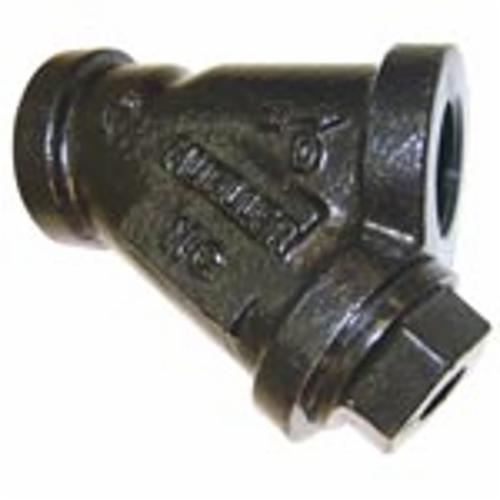

2-1/2" Wye Strainer, Class 250, Cast Iron, 11-M-7429, Mueller

  • Manufacturers: Mueller Industries
  • Brand Name: Mueller®
  • Part#: 272596
  • MPN: CGI_272596
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Used extensively to strain foreign matter from pipe lines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment

Material      :      Cast Iron ASTM A126-B
Nominal Size      :      2-1/2 in
Overall Length      :      9-1/4 in
Series      :      Class 250
Type      :      11M
  • • Gasketed cap is used for easy disassembly and assembly. Many others use Loctite, rendering disassembly virtually impossible.
  • • Self cleaning is accomplished by opening the plug or valve connected to the blowoff outlet.
  • • Outlets are NPT Tapped
  • • Not normally furnished with plug. Plug available.
  • • Generously proportioned bodies
  • • Open Area Ratio much greater than pipe size, ensure low pressure loss.
