LEGEND 108-153A

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

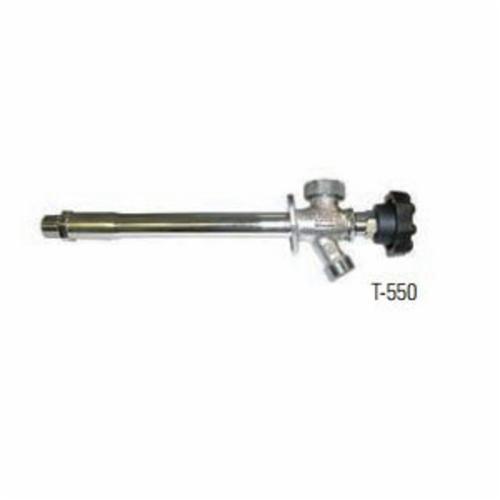

LEGEND Frost-Free Sillcock, Series: T-550, 1/2 x 8 in Nominal, MNPT/C, 125 psi Pressure Rating, Media: Oil/Water, Brass Body, Brass Stem/EPDM O-Ring Trim, Handwheel Actuator, Chrome Plated, 13.77 in L x 3.49 in W, Domestic

• Softouch handle™, patented with integrated anti-siphon and automatic draining, brass cap and rubber-clad handwheel is easy to operate with wet or gloved hands
• Quarter-turn operation, dual ceramic discs offer durable, positive shut-off
• Oversized, angled mounting flange with screw slots - covers enlarged, over-drilled sill holes
• Brass handle screw, cartridge body, aluminum identification plate, aluminum and tpr handwheel forged brass chrome plated bonnet nut, packing nut, end adapter, cartridge stem, vacuum breakers cap, adapter lock-ring, NBR (nitrile rubber) bonnet nut o-ring, stem packing, cup washer, vacuum breakers seat and o-ring, adapter o-ring, brass outer tube, stainless steel spring, retaining clip, forged brass check valve piston, spacer, cartridge end, fluoroelastomer o-ring, PTFE cartridge packing, EPDM spacer o-ring, ceramic disk, pom vacuum breakers body and disk, virgin CPVC resin socket adapter

• Data/Spec Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/LEGEND_108_001A_Specification_Sheet_1.pdf
