LEONARD® 270-LF
  1. pin-int

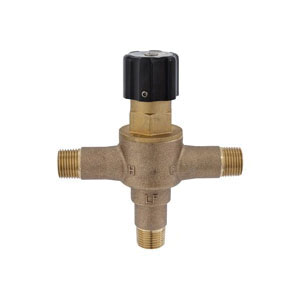

LEONARD® 270-LF

Leonard® ECO-MIX&rade; 270-LF Lead Free Thermostatic Mixing Valve, 1/2 in, MIPS, 125 psi, 0.25 gpm, Bronze, Domestic

  • Manufacturers: Leonard Valve Company
  • Brand Name: LEONARD®
  • Part#: 178107
  • MPN: 270-LF
  • UPC: 076335156231
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Leonard® ECO-MIX&rade; Thermostatic Mixing Valve, 1/2 in Nominal Size, MIPS, 125 psi, 90 to 140 deg F, 0.25 gpm, Knob Actuator, 5 in Inlet to Outlet Length, Bronze Body, Buna-N O-ring, 5-1/2 in H, Domestic

Actuator Type      :      Knob
Body Material      :      Bronze
Dimensions      :      5-1/2 in H
Domestic/Import      :      Domestic
End Style      :      MIPS
Flow Rate      :      0.25 gpm
Inlet to Outlet Length      :      5 in
Nominal Size      :      1/2 in
Pressure Rating      :      125 psi
Softgoods Material      :      Buna-N O-ring
Temperature Rating      :      90 to 140 deg F
  • Vandal resistant locked temperature adjustment cap
  • Copper encapsulated thermostat assembly with polymer thermoplastic shuttle
  • Stainless steel springs
  • Integral check valves on hot and cold inlets
  • Certified to meet low lead requirements of wetted surface area containing less than 0.25% lead by weight
  • Lead Free
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Leonard_170_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Leonard_270-LF_Data_Sheet.pdf
  • pdfInstruction/Installation Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Leonard_270-LF_Instruction_Installation.pdf
