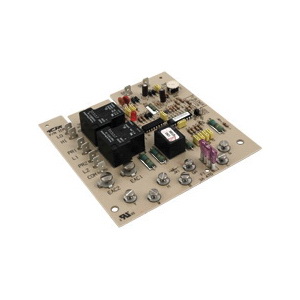

ICM™ ICM275 Fan Blower Control, 18 to 30 VAC, Domestic

  • Manufacturers: ICM Controls
  • Brand Name: ICM™
  • Part#: 154453
  • MPN: ICM275
  • UPC: 800442000756
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ICM™ Fan Blower Control, 18 to 30 VAC, 5-1/2 in Width, 7/8 in Depth, 5-1/2 in Height, Domestic

Depth      :      7/8 in
Domestic/Import      :      Domestic
Height      :      5-1/2 in
Voltage Rating      :      18 to 30 VAC
Warranty      :      1 Year
Width      :      5-1/2 in
  • Fan blower control - Replacement for OEM models including Carrier CES0110019 and HH84AA-x series control boards
  • Microprocessor-based fan blower control ICM275
  • Heavy duty heat relay
  • Purges ducts of residual air
  • Integral short cycle protection
  • Contact ratings: 20 A at 240 VAC on high, 10 A at 240 VAC on low
  • Time delays: heat ON - 60 sec fixed, heat OFF - 60 to 240 sec adjustable, cool OFF - 90 sec fixed
