ICM™ ICM271

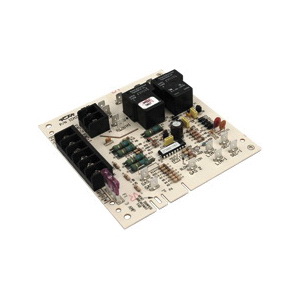

ICM™ ICM271 Fan Blower Control, 18 to 30 VAC, Domestic

  • Manufacturers: ICM Controls
  • Brand Name: ICM™
  • Part#: 154451
  • MPN: ICM271
  • UPC: 800442000022
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

ICM™ Fan Blower Control, 18 to 30 VAC, 5-1/4 in Width, 1 in Depth, 5 in Height, Domestic

Depth      :      1 in
Domestic/Import      :      Domestic
Height      :      5 in
Voltage Rating      :      18 to 30 VAC
Warranty      :      1 Year
Width      :      5-1/4 in
  • Fan blower control - Replacement for OEM models including Carrier CES0110017/18 and HH84AA-x series control boards
  • Reliable solid state fan blower control ICM271
  • Specifically designed to replace popular gas furnace centers
  • Pin selectable blower delays
  • High power, relay output
  • Dual function fan delay timer
  • Controls the circulating fan in heat pump, A/C and forced air systems
  • OFF delay purges ducts for residual air
  • ON delay allows air to reach the proper comfort level prior to energizing the fan
  • Contact ratings: NO - 20 A, NC - 10 A
  • Fixed time delays: heat ON - 75 sec, heat OFF - 105 sec, cool OFF - 90 sec
