Matco-Norca™ 521T06LF
  1. pin-int

Matco-Norca™ 521T06LF

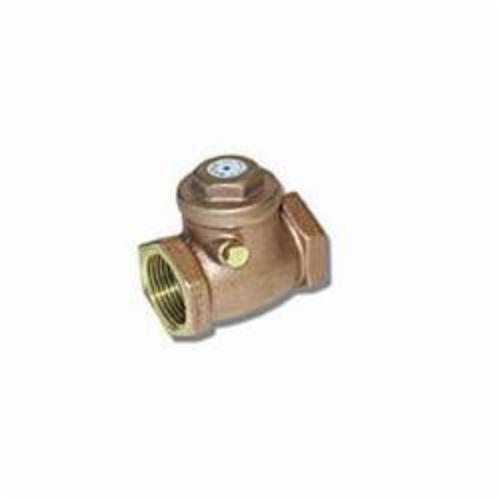

Matco-Norca™ 521T06LF Lead-Free Swing Check Valve, 1-1/4 in IPS, Brass

  • Manufacturers: Matco-Norca
  • Brand Name: Matco-Norca™
  • Part#: 236254
  • MPN: 521T06LF
  • UPC: 082647105058
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Matco-Norca™ Swing Check Valve, 1-1/4 in Nominal Size, IPS, 200 psi, 3.19 in Inlet to Outlet Length, 2.07 in Top to Inlet Center, Brass Body, Fiber H Packing

Body Material      :      Brass
End Style      :      IPS
Inlet to Outlet Length      :      3.19 in
Nominal Size      :      1-1/4 in
Pressure Rating      :      200 psi
Softgoods Material      :      Fiber H Packing
Top to Inlet Center      :      2.07 in
Warranty      :      1 Year Limited
  • Aluminum name plate
  • UNS C89550 cap disc/bolt
  • ASTM B19-C26000 brass pin
  • 125 psi SWP
  • Lead free
  • Note: these product complies with 0.25% weighted average lead content on wetted surfaces in accordance with safe water drinking Act (SDWA) / Federal Public law no. 111-380
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Matco_Norca_521C03LF_Data_Sheet.pdf
