Jomar Valve® 105-605G
  1. pin-int

Jomar Valve® 105-605G

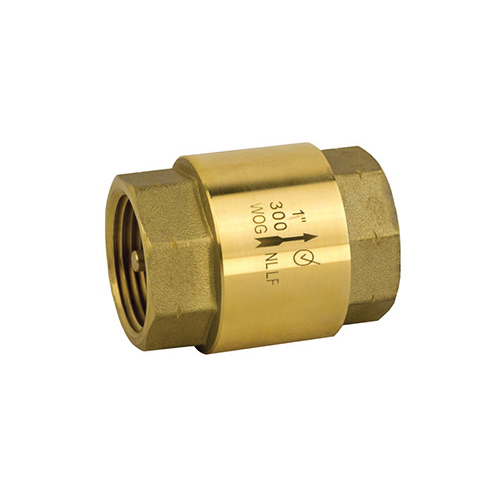

1" In-Line Check Valve, MNPT, 150 lb, Brass Body, Jomar Valve® 105-605G T-521G

  • Manufacturers: Jomar Valve
  • Brand Name: Jomar Valve®
  • Part#: 260851
  • MPN: 105-605G
  • UPC: 662527305022
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Jomar Valve® Series: T-521G 1" In-Line Check Valve, NPT End Style, 150 lb, 250 deg F, Low Lead Compliance: Yes, Spring Assisted Actuator, 1.77 in Inlet to Outlet Length, Brass Body, PTFE Trim, PTFE Seal,

Actuator Type      :      Spring Assisted
Body Material      :      Brass
End Style      :      NPT
Inlet to Outlet Length      :      1.77 in
Low Lead Compliance      :      Yes
Nominal Size      :      1 in
Pressure Class      :      150 lb
Series      :      T-521G
Softgoods Material      :      PTFE Seal
Temperature Rating      :      250 deg F
Trim Material      :      PTFE
  • Can be installed in any position
  • Forged lead free brass body
  • Bubble tight PTFE seal
  • Wetted surface contain less than 0.25 % lead content
  • 300 WOG
  • pdfCatalog https://assets.unilogcorp.com/2/ITEM/DOC/Jomar_Valve_400001_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Jomar_Valve_105603G_Specification_Sheet.pdf
