Amtrol® T-5
  1. pin-int

Amtrol® T-5

2 Gallon Amtrol T-5 THERM-X-SPAN Expansion Tank, 140-735

  • Manufacturers: Amtrol
  • Brand Name: Amtrol®
  • Part#: 357786
  • MPN: T-5
  • UPC: 64203154849
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

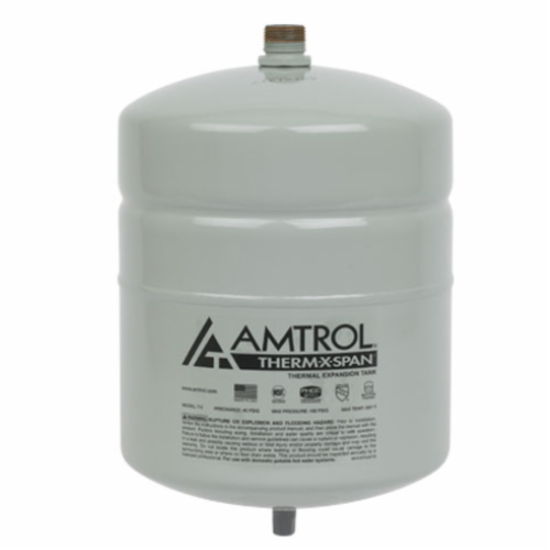

Amtrol T-5 THERM-X-SPAN Expansion Tank, 2.0 Gallon (140-735)The Amtrol THERM-X-SPAN T-5 Expansion Tank has a steel shell, plastic liner, and rubber diaphragm with a brass system connection. The maximum operating temperature is 200F and the maximum working pressure is 150 PSIG. Unit comes with a 40 PSIG factory precharge.Amtrol THERM-X-SPAN T-5 Expansion Tank Specifications: Tank Volume (Gallons) - 2.0 Max. Accept Factor - 0.45 System Connection (Inches) - 3/4 Height (Inches) - 12-5/8 Diameter (Inches) - 8 Shipping Weight (lbs.) - 5 Temperature = 200F. Maximum Working Pressure = 150 PSIG Factory Precharge = 40 PSIG

Amtrol T-5 THERM-X-SPAN Expansion Tank, 2.0 Gallon 140-735

  • pdfInstallation Manual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Thermal-Expansion-Tank-IO.pdf
  • pdfSubmittal Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Amtrol_therm_x_span.pdf
