Chicago Faucet® 1015-ABCP
  1. pin-int

Chicago Faucet® 1015-ABCP

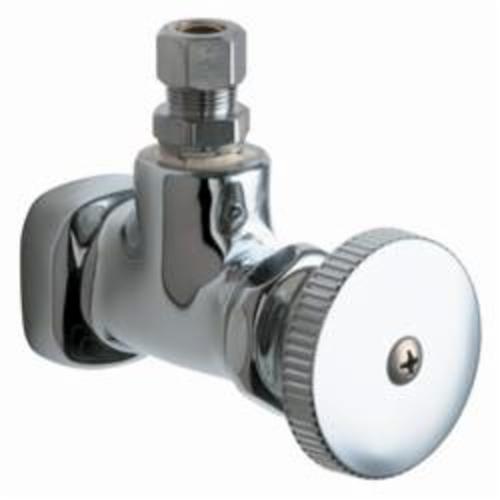

Chicago Faucet® 1015-ABCP Angle Stop Fitting, 1/2 x 3/8 in, FNPT x Female Compression, 20 to 125 psi, Domestic

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet®
  • Part#: 299600
  • MPN: 1015-ABCP
  • UPC: 611943474997
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Chicago Faucet® Angle Stop Fitting, 1/2 x 3/8 in Nominal Size, FNPT x Female Compression, 20 to 125 psi, Media: Water, 40 to 140 deg F, 3-5/8 in W, Domestic

Dimensions      :      3-5/8 in W
Domestic/Import      :      Domestic
End Style      :      FNPT x Female Compression
Media      :      Water
Nominal Size      :      1/2 x 3/8 in
Pressure Rating      :      20 to 125 psi
Temperature Rating      :      40 to 140 deg F
Warranty      :      Limited Lifetime Faucet/5 Years Limited Cartridge/1 Year Limited Finish
  • Stop with 1/2 in inlet
  • 318-CP: 1-7/8 in wheel handle, tapered square broach
  • 217-XTAB: Slow compression operating cartridge
  • 1/2 in NPT female thread inlet
  • 3/8 in OD female compression outlet
  • Chrome Plate Finish
  • ECAST® construction with equal to or less than 0.25% lead content by weighted average
  • ECAST® products are intended for installation where state laws and local codes mandate lead content levels or in any location where lead content is a concern
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Chicago_Faucet_1015-ABCP_Data_Sheet.pdf
  • pdfInstruction/Installation Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Chicago_Faucet_512-GCABCP_Installation.pdf
