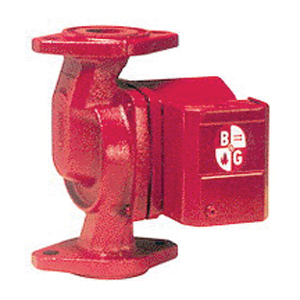

A flanged in-line system lubricated circulating pump designed specifically for quiet operation in a closed hydronic heating system.
Bell & Gossett Wet Rotor Circulator Pump, 3-Speed, Series: NRF, 24 gpm, 19 ft Maximum Head, 125 W, 115 VAC, 1.1 A, 60 Hz, 150 psi Maximum, 2950 rpm Motor, In-line Mount, 225 deg F, 5-1/8 in W x 6-3/16 in D x 4-7/8 in H, Import
Amperage Rating |
: |
1.1 A |
Dimensions |
: |
5-1/8 in W x 6-3/16 in D x 4-7/8 in H |
Domestic/Import |
: |
Import |
Flow Rate |
: |
24 gpm |
Frequency Rating |
: |
60 Hz |
Maximum Head |
: |
19 ft |
Maximum Pressure |
: |
150 psi |
Motor Speed |
: |
2950 rpm |
Mounting Type |
: |
In-line |
Power Rating |
: |
125 W |
Series |
: |
NRF |
Temperature Rating |
: |
225 deg F |
Type |
: |
3-Speed |
Voltage Rating |
: |
115 VAC |
Warranty |
: |
3 Years |
- High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
- Unique B and G DuraGlide bearing system assures years of trouble-free start-ups
- Closed impeller design improves operating efficiency
- Backed by B and G's representatives and a 3-year warranty-the best in the business
- DuraGlide bearing system incorporates several components working together to eliminate seasonal freeze-up
- Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
- Self-cleaning particle shield protects the shaft and bearings from system start-up debris
- One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
- Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
- Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange connection
- Construction: cast iron pump body, Noryl impeller, ceramic shaft, carbon bearings
-
