John Guest® PP010823W
  1. pin-int

John Guest® PP010823W

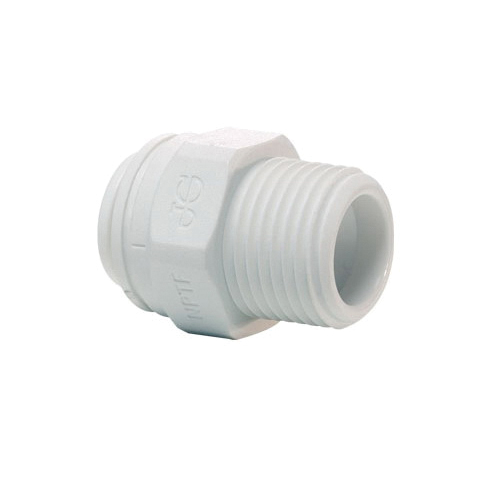

1/4 x 3/8" Adapter, Tube x FNPT, Polypropylene, Domestic, Lead Free, John Guest® Speedfit® PP010823W

  • Manufacturers: John Guest
  • Brand Name: John Guest®
  • Part#: 330006
  • MPN: PP010823W
  • UPC: 665626115110
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The PP Range of inch-size push-in fittings is offered for tube sizes 1/4 in OD to 1/2 in OD the fittings are manufactured in white polypropylene with food grade EPDM O-rings. They have been developed to satisfy the filtered pure water market and wide range of applications.

John Guest® Speedfit® Straight Adapter, Fitting/Connector Type: Adapter, 1/4 x 3/8 in Nominal Size, Tube x FNPT, 150 psi, Polypropylene, White, 140 deg F, Domestic

Color      :      White
Domestic/Import      :      Domestic
End Style      :      Tube x FNPT
Fitting/Connector Type      :      Adapter
Material      :      Polypropylene
Nominal Size      :      1/4 x 3/8 in
Pressure Rating      :      150 psi
Temperature Rating      :      140 deg F
  • Push-fit technology
  • Fittings are manufactured in white polypropylene with food grade EPDM O-rings
  • Quick disconnection without the need for tools
  • High chemical resistance
  • Food quality and suitable for potable liquids and pure water applications
  • Not suitable for compressed air and vacuum applications
  • Working pressures and temperatures: 150 psi at 70 deg F (10 bar at 20 deg C), 60 psi at 140 deg F (4 bar at 60 deg C)
  • All these fittings are produced in Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applications
  • Lead free
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/John_Guest_ASVPP1LF_Catalog.pdf
  • videoVideo Link http://www.youtube.com/embed/nPfTYPdNZb0
