ProLine™ 107-401NL
  1. pin-int

ProLine™ 107-401NL

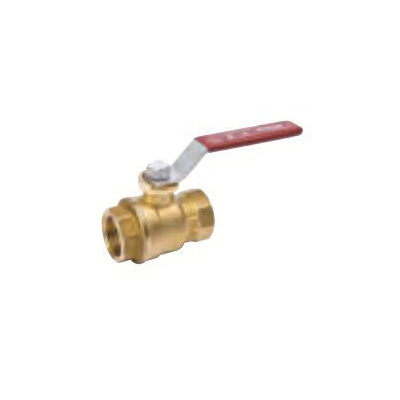

1/4" Premium Ball Valve, FNPT, Brass Body, Full Port, Lead Free, ProLine™ 107-401NL

  • Manufacturers: Mueller Industries
  • Brand Name: ProLine™
  • Part#: 68220
  • MPN: 107-401NL
  • UPC: 032888132900
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

ProLine™ Ball Valve, Premium Lead-Free, Series: 7710, 1/4 in Nominal Size, FNPT, 600 psi WOG, -20 to 300 deg F, Full Port, Brass Body, Double Viton O-Ring, PTFE Disc/Seat, Import

Body Material      :      Brass
Domestic/Import      :      Import
End Style      :      FNPT
Nominal Size      :      1/4 in
Port Type      :      Full
Pressure Rating      :      600 psi WOG
Series      :      7710
Softgoods Material      :      Double Viton O-Ring, PTFE Disc/Seat
Temperature Rating      :      -20 to 300 deg F
Type      :      Premium Lead-Free
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Mueller_C15125HC_Catalog.pdf
