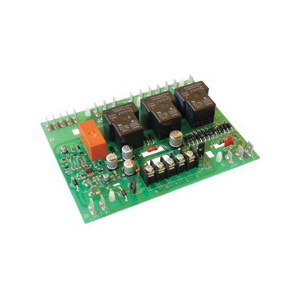

ICM™ Furnace Control Board, 4-1/4 in Length, 5-5/8 in Width, 98 to 132 VAC Input, Domestic
| Domestic/Import | : | Domestic |
| Input Voltage | : | 98 to 132 VAC |
| Length | : | 4-1/4 in |
| Width | : | 5-5/8 in |
- Replacement for Lennox control boards (replaces all BCC1, BCC2 and BCC3 circuit boards)
- Low cost, form, fit and functional replacement ignition control
- Low cost, form, fit and functional replacement board for Lennox
- Controls inducer fan motor, blower fan and monitors limit switches
- Microprocessor based design
- Functions with all 24 VAC thermostats
- 1 in H
- 20 A at 120 VAC cool blower
- 20 A at 120 VAC heat blower
- 5 A at 120 VAC inducer motor
- 1 sec cool blower on delay
- 1 sec cool blower off delay
- 45 sec heat blower on delay
- 90, 150, 210, 270 sec heat blower off delay
