DiversiTech DP-1

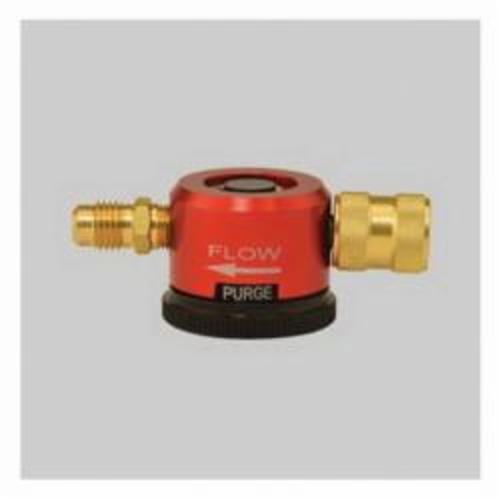

Diversitech DP-1 Nitrogen Purge Tool, 1/4 in, Male SAE Flare x Swivel Female SAE Flare, 25 to 35 scfh, Domestic

  • Manufacturers: DiversiTech
  • Brand Name: DiversiTech
  • Part#: 294898
  • MPN: DP-1
  • UPC: 095247152728
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

The Nitrogen Purge Tool is a quick and easy way to purge copper pipes with nitrogen. Then, with a turn of the dial, quickly switch to a very low ow of nitrogen to properly braze the copper. It has a durable aluminum design so you can just throw it into your tool bag when you are done.

Diversitech Nitrogen Purge Tool, 1/4 in Nominal Size, Male SAE Flare x Swivel Female SAE Flare, 200 psi, 25 to 35 scfh, Domestic

Domestic/Import      :      Domestic
End Style      :      Male SAE Flare x Swivel Female SAE Flare
Flow Rate      :      25 to 35 scfh
Includes      :      Adjustable Dial
Nominal Size      :      1/4 in
Pressure Rating      :      200 psi
  • Purge flows rate of 25 to 35 scfh, 19 to 23 lpm (0.03 dia orifice) at 50 psig regulator pressure
  • Braze flows rate 3 to 6 scfh, 2 to 3 lpm (0.01 dia orifice) at 50 psig regulator pressure
  • 50 psig inlet pressure for proper flows rates
  • The purge valve is not a regulator and therefore the output pressure will equal the input pressure when the outlets is blocked
  • It is not intended to be used with the outlets blocked
  • The user should not weld a completely closed look as the pressure will build
  • We recommend removing the Schrader valve and letting it vent
  • 7/16 to 20 in thread size
