Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

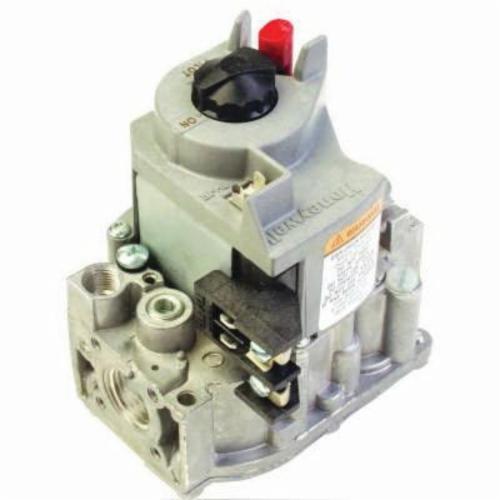

Honeywell Gas Valve, 1-Stage, Series: VR8200, 1/2 in Nominal Size, 0.5 psi, Standing Pilot Ignition, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, 1/4 in Male Quick Connect Terminal, 0 to 175 deg F, 5-3/16 in H x 4-1/8 in W x 3-1/4 in D, Import
Coil Voltage |
: |
24 VAC 60 Hz |
Dimensions |
: |
5-3/16 in H x 4-1/8 in W x 3-1/4 in D |
Domestic/Import |
: |
Import |
Electrical Connection |
: |
1/4 in Male Quick Connect Terminal |
Gas Type |
: |
Natural Gas |
Ignition Type |
: |
Standing Pilot |
Includes |
: |
(1) 3/4 in Straight Flange, (1) 1/2 x 3/8 in Reducer Bushing and Natural to LP Conversion Kit |
Nominal Capacity |
: |
20000 to 200000 Btu/hr |
Nominal Size |
: |
1/2 in |
Pressure Rating |
: |
0.5 psi |
Series |
: |
VR8200 |
Temperature Rating |
: |
0 to 175 deg F |
Type |
: |
1-Stage |
Warranty |
: |
Limited |
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Compact design
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- LITE-RITE (Off-Pilot-On) lighting sequence
- Straight-through body pattern
- 0 to 90 deg in any direction from the upright position of the gas control knob mounting
- 3-1/2 in WC pressure regulator setting
- Standard opening gas vavle
-
