Honeywell S8910U1000/U

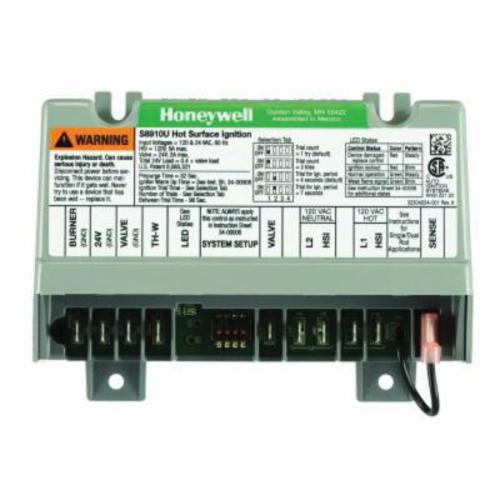

Honeywell S8910U1000/U Universal Hot Surface Ignition Module, 24 VAC, 2 A, 24 V Control, 32 sec Prepurge

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Part#: 152770
  • MPN: S8910U1000/U
  • UPC: 085267141246
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading branchavailability

Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions and accessories for easy replacement.

Honeywell Hot Surface Ignition Module, Universal, 24 VAC, 2 A, 24 V, 32 sec Prepurge

Amperage Rating      :      2 A
Control Voltage      :      24 V
Prepurge Time      :      32 sec
Type      :      Universal
Voltage Rating      :      24 VAC
Warranty      :      Limited
  • Replaces over 800 White-Rodgers, Robertshaw® and Honeywell® hot surface ignition models
  • For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
  • S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
  • For local (single rod) or remote (dual rod) rectification type flame sensing
  • Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
  • Provides one or three ignition trials (four-second or seven-second trials) per call for heat
  • Field selectable number of ignition trials and trial time based on unit being replaced
  • Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
  • 24 V control at 60 Hz
  • pdfManual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Guide.pdf
