Honeywell S9200U1000/U

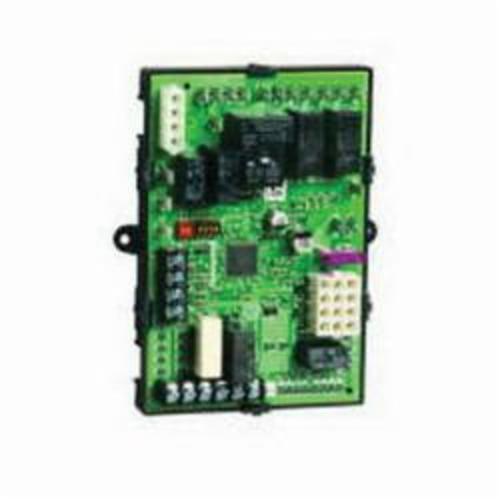

Honeywell S9200U1000/U Hot Surface Ignition Integrated Furnace Control, 120 VAC, Import

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • Part#: 152768
  • MPN: S9200U1000/U
  • UPC: 085267316149
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Universal Integrated Furnace Control offers universal compatibility and diagnostics. It replaces a large number of furnace control models in single-stage warm air furnaces. Uses 120VAC hot surface igniter. Includes instructions and special wire harnesses for easy replacement.

Honeywell Integrated Furnace Control, Hot Surface Ignition, 120 VAC, 17/27 or 30/30 sec Igniter Warm-Up Time, 30 sec Prepurge, 5.6 in Width, 7.6 in Depth, 3-1/2 in Height, Import

Depth      :      7.6 in
Domestic/Import      :      Import
Height      :      3-1/2 in
Igniter Warm-Up Time      :      17/27 or 30/30 sec
Prepurge Time      :      30 sec
Type      :      Hot Surface Ignition
Voltage Rating      :      120 VAC
Warranty      :      Limited
Width      :      5.6 in
  • Cross reference and wire harnesses provided for simple replacement over 195 existing furnace controls
  • Main burner ignition using a 120 V hot surface igniter
  • Flame rectification circuit to monitor flame presence
  • Monitoring of system pressure switch, high temperature limit and rollout functions
  • Appliance operation or safety requirements controlled via microprocessor
  • Controls circulating fan motor based on appliance requirements, in response to a conventional low voltage thermostat
  • LED system status, performance and diagnostic indication
  • Twinning capability
  • 120 VAC line/24 V low voltage
  • pdfCatalog https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Catalog.pdf
  • pdfManual https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Guide.pdf
