Apollo™ 77WLF14401

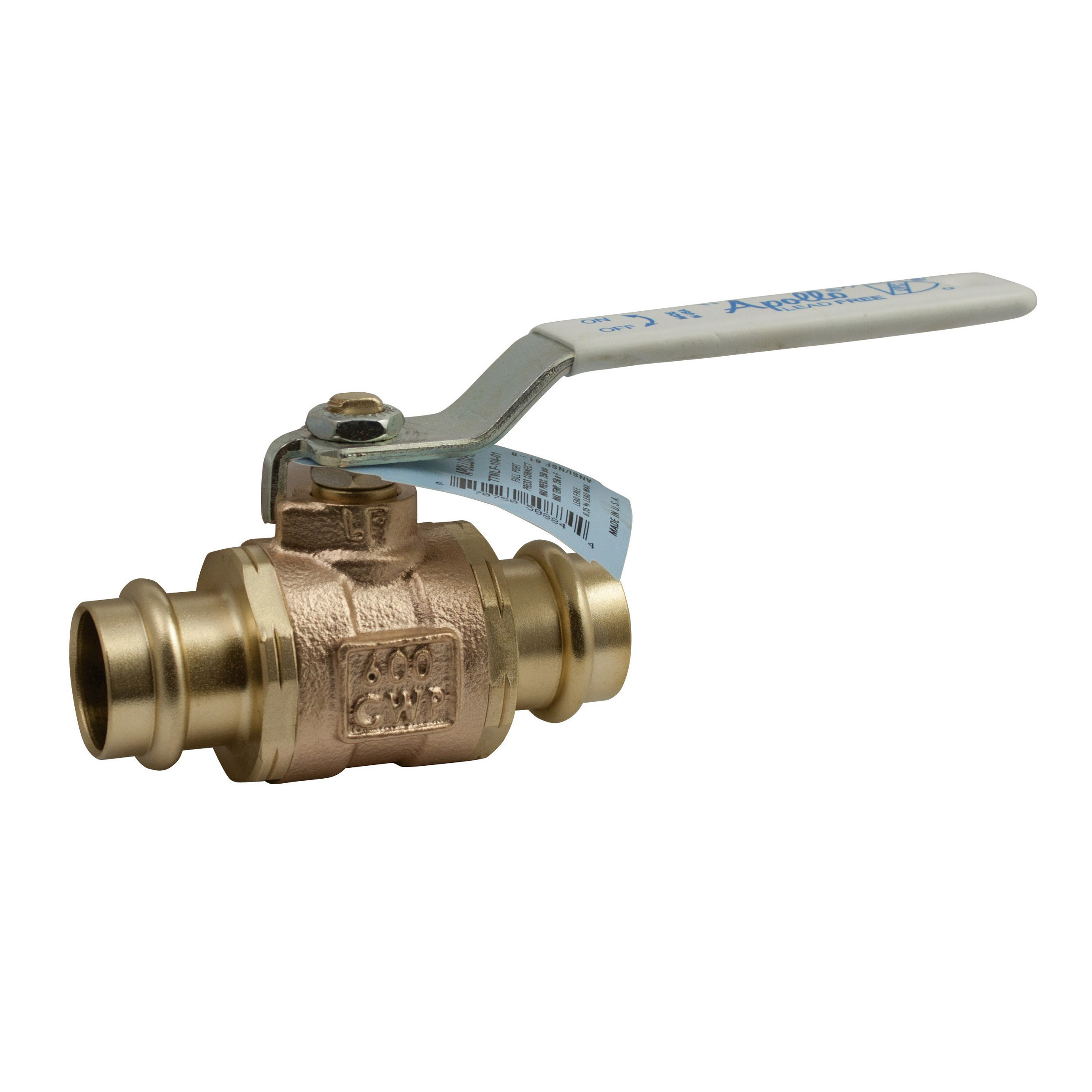

3/4" 2-Piece Lead Free Ball Valve, Press, Bronze, Full Port, Apollo™ ApolloXpress® 77WLF-144-01
Apollo™ ApolloXpress® Ball Valve, 2-Piece, Series: 77WLF-140, 3/4 in Nominal Size, Press, 250 psig CWP, 0 to 250 deg F, Full Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 3.55 in Inlet to Outlet Length, 2.01 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem Trim, Multi-Fill PTFE Stem Packing and Seat/EPDM O-Ring, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | Press |
| Inlet to Outlet Length | : | 3.55 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 250 psig CWP |
| Series | : | 77WLF-140 |
| Softgoods Material | : | Multi-Fill PTFE Stem Packing and Seat/EPDM O-Ring |
| Temperature Rating | : | 0 to 250 deg F |
| Top to Inlet Center | : | 2.01 in |
| Trim Material | : | 316 Stainless Steel Stem |
| Type | : | 2-Piece |
| Warranty | : | 5 Years |
