Azure® is an electronically controlled motor (ECM) that replaces a multitude of applications. Two motors cover ratings from 1/8 HP to 1/3 HP at 208-230V 825/1075 RPM and 1/3 HP to 1/2 HP 208-230V 825/1075 RPM and CW or CCW. These motors are simple to install. The Azure® condenser fan motors connect the same as a standard PSC condenser fan motor, BUT WITHOUT the capacitor. Just plug the motor into a 115V power source (using supplied programming cable) and select 1 of 4 operating modes and then install the motor: 1) 1075 RPM CW (LE) - Factory Default 2) 1075 RPM CCW (LE) 3) 825 RPM CW (LE) 4) 825 RPM CCW (LE) Unlike other ECM motors, an outboard surge protector is included with the Azure® wiring harness. This is a replaceable device that is much less expensive to replace than replacing the entire motor in the event of a power surge.

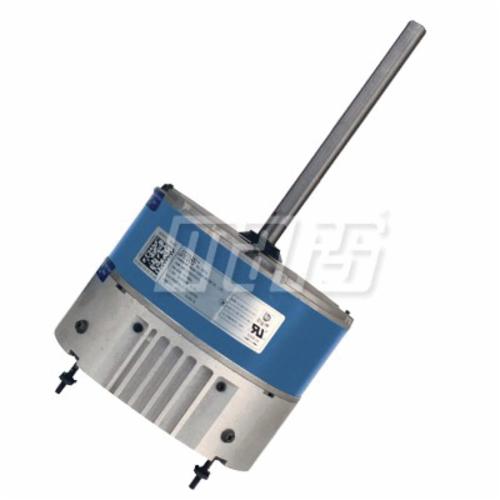

Mars® Azure® Digi-Motor® Condenser Fan Motor, ECM, 230 VAC, 50/60 Hz, 1/3 hp, 1 ph, 825/1075 rpm, 1 Speed, CAO, NEMA 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, CW/CCW, Ball Bearing, Stud Mount, -32 to 55 deg C, Insulation Class: Class B, 5-1/2 in Dia
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | CAO |
| Frame | : | NEMA 48 |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 1/3 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | CW/CCW |

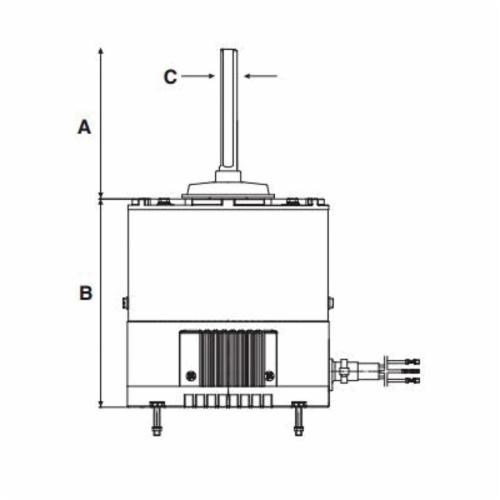

| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed | : | 825/1075 rpm |
| Temperature Rating | : | -32 to 55 deg C |
| Type | : | ECM |
| Voltage Rating | : | 230 VAC |
- Multi horsepower, self-adjusting
- High efficiency ECM technology
- No capacitor required
- Water slinger on shaft
- Electronical thermal protection
