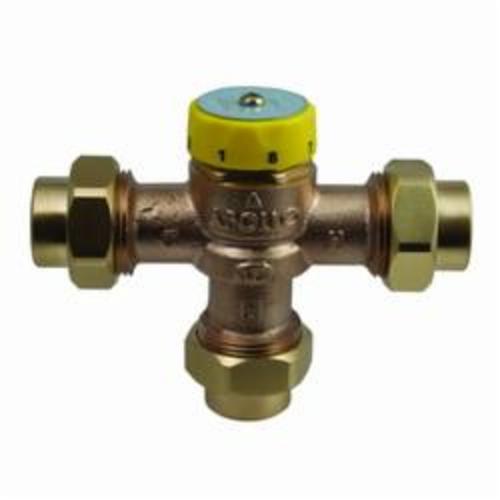

Apollo™ 34ALF214T

Apollo™ 34ALF Model MVA-34-LF Lead Free Master Thermostatic Mixing Valve, 3/4 in, FNPT, 150 psig, 0.5 gpm, Bronze

  • Manufacturers: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 237953
  • MPN: 34ALF214T
  • UPC: 670750520044
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

The Apollo® MVA-LF (34ALF Series) thermostatic master mixing valves are designed for ASSE 1017 Point of Source approved applications. They provide hot water temperature control of potable and non-potable hot water distribution systems. The valves are built using Lead Free materials and are available with a variety of options and end connections.

Apollo™ Thermostatic Mixing Valve, Lead Free Master, Series: 34ALF, Model: MVA-34-LF, 3/4 in Nominal Size, FNPT, 150 psig, 210 deg F, 0.5 gpm, Media: Water, 4.56 in Inlet to Outlet Length, Bronze Body, Chloramine Resistant EPDM O-Ring, Domestic

Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      FNPT
Flow Rate      :      0.5 gpm
Inlet to Outlet Length      :      4.56 in
Media      :      Water
Nominal Size      :      3/4 in
Pressure Rating      :      150 psig
Series      :      34ALF
Softgoods Material      :      Chloramine Resistant EPDM O-Ring
Temperature Rating      :      210 deg F
Type      :      Master
Warranty      :      5 Years
  • Superior thermostatic element technology for optimum performance, reliability and accuracy
  • Integral inlet strainers and check valves to protect against cross-flow and foreign particles in the piping system
  • Thermostat over-temperature protection
  • Tamper resistant maximum temperature calibration option
  • Fingertip temperature control
  • Instantaneous cold or hot water supply failure shut-off protection
  • Multiple connection options to fit your specific needs
  • 39 to 80 deg F (4 to 27 deg C) cold water inlet
  • 120 to 180 deg F (49 to 82 deg C) hot water inlet
  • 85 to 140 deg F (30 to 60 deg C) mixed water
  • Flowrate at 30 psid: 19 gpm (64 lpm)
  • Lead free: the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Complies with CA AB1953, VT Act 193, MD HB372, LA HB471 and Federal Public Law 111-380
