MARS now offers Gardner Bender wire connectors. The industry's standard screw-on connector, with high quality, performance and durability.

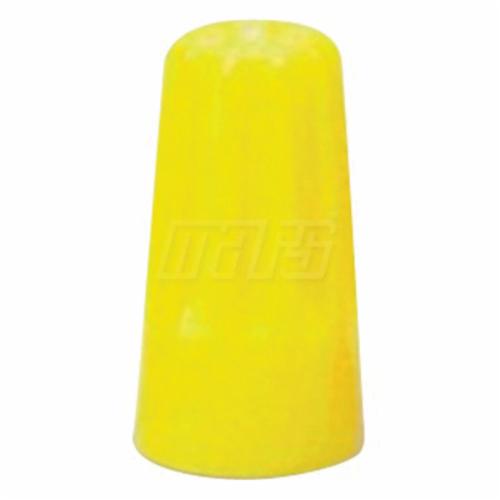

Mars® Wire Connector, Twist-On, 10 to 18 AWG Conductor, 600 VAC, Polypropylene, Yellow Code, 1.06 in H x 0.66 in W
Color Code |
: |
Yellow |
Conductor Size |
: |
10 to 18 AWG |
Dimensions |
: |
1.06 in H x 0.66 in W |
Material |
: |
Polypropylene |
Type |
: |
Twist-On |
Voltage Rating |
: |
600 VAC |
- Color coded for easy size selection
- Makes quick, secure connections for positive continuity, Tightens without ratcheting, removable for re-use
- Thermoplastic shell shields against environmental extremes
- Superior flash-over protection, high-dielectric shell features deep skirt design to prevent exposure of bare wire
- Versatile size selection covers building wire combinations from 22 to 10 AWG
- Complies with federal specification W-5-610D
- (2) 10 AWG with (2) 12 AWG max wire combination, (2) 14 AWG min wire combination
- Zinc plated steel insert
- Fluted shell surface allows for easy fingertight connections
- 221 deg F rating
-
