Apollo™ 7510441

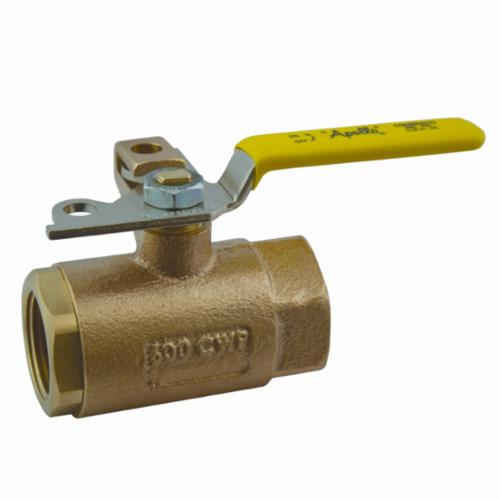

3/4" 2-Piece Ball Valve, FNPT, Bronze, Standard Port, Apollo™ 75-104-41

  • Manufacturers: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 74823
  • MPN: 7510441
  • UPC: 670750691331
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Company Availability: loading
  • Next Day Delivery: loading
  • Available for pickup at : loading

Apollo™ 2-Piece Ball Valve, Series: 75-100, 3/4 in Nominal, FNPT, 600 psi CWP Pressure Rating, 50 to 200 deg F Temperature, Standard Port, Lever Handle Actuator, Chrome Plated Brass Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem Trim, Softgoods Material: MPTFE Stem Packing/RPTFE Seat, Domestic

Actuator Type      :      Lever Handle
Ball Material      :      Chrome Plated Brass
Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      FNPT
Inlet to Outlet Length      :      3.37 in
Nominal Size      :      3/4 in
Port Type      :      Standard
Pressure Rating      :      600 psi CWP
Series      :      75-100
Softgoods Material      :      MPTFE Stem Packing/RPTFE Seat
Temperature Rating      :      50 to 200 deg F
Top to Inlet Center      :      2-1/4 in
Trim Material      :      Brass Stem
Warranty      :      5 Years
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77V-104-01_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_75-102-01_Data_Sheet_1.pdf
  • pdfData/Spec Sheet-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_Conbraco_7510201_Data_Sheet.pdf
  • pdfCatalog-1 https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_77V-104-01_Catalog.pdf
  • pdfInstruction/Installation Sheet https://www.capitolgroupinc.com//ASSETS/DOCUMENTS/ITEMS/EN/Apollo_75-102-01_Installation_Instruction.pdf
  • linkVideo Link https://youtu.be/qy5qmtgTtPQ
